Circuit Protection Devices

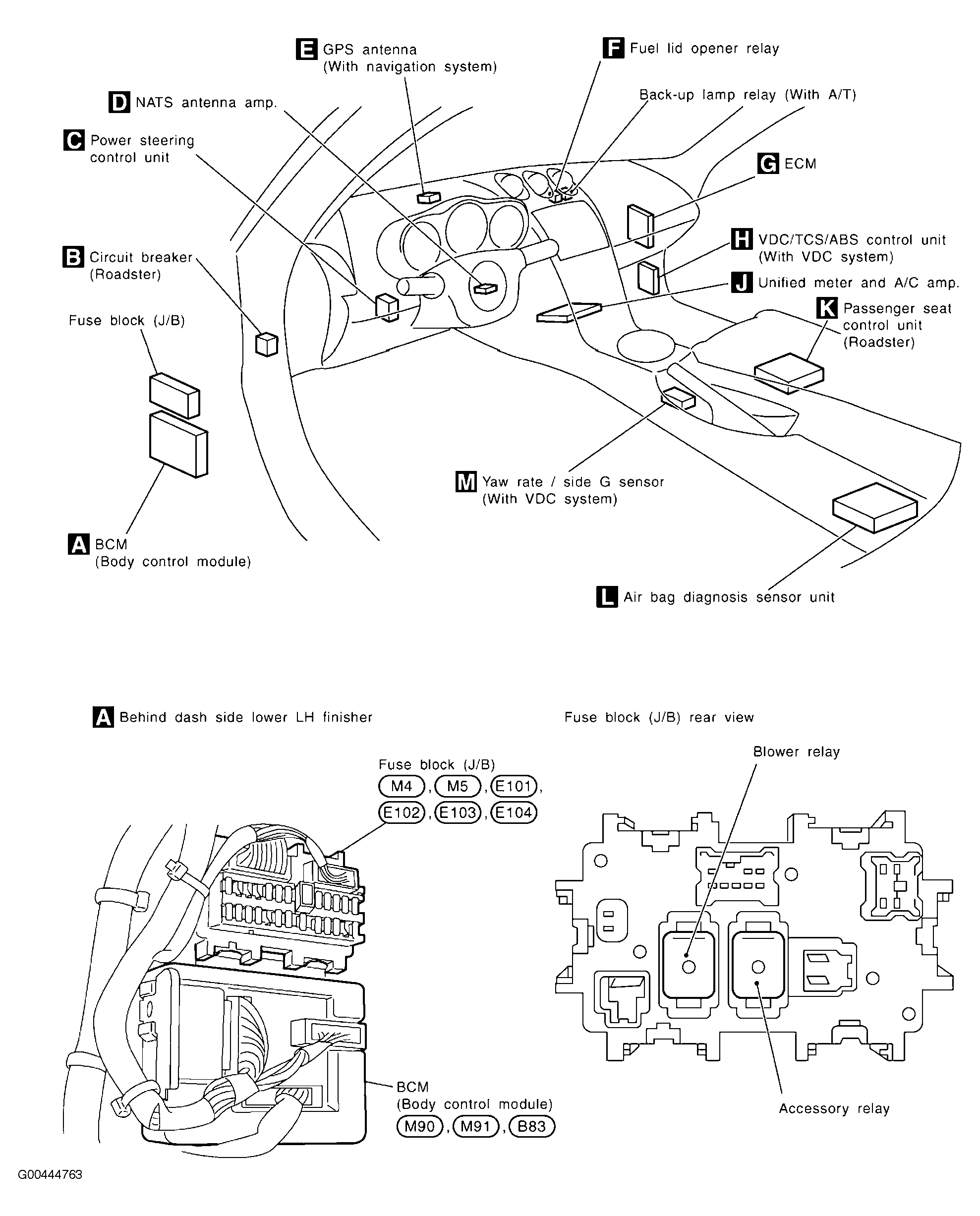

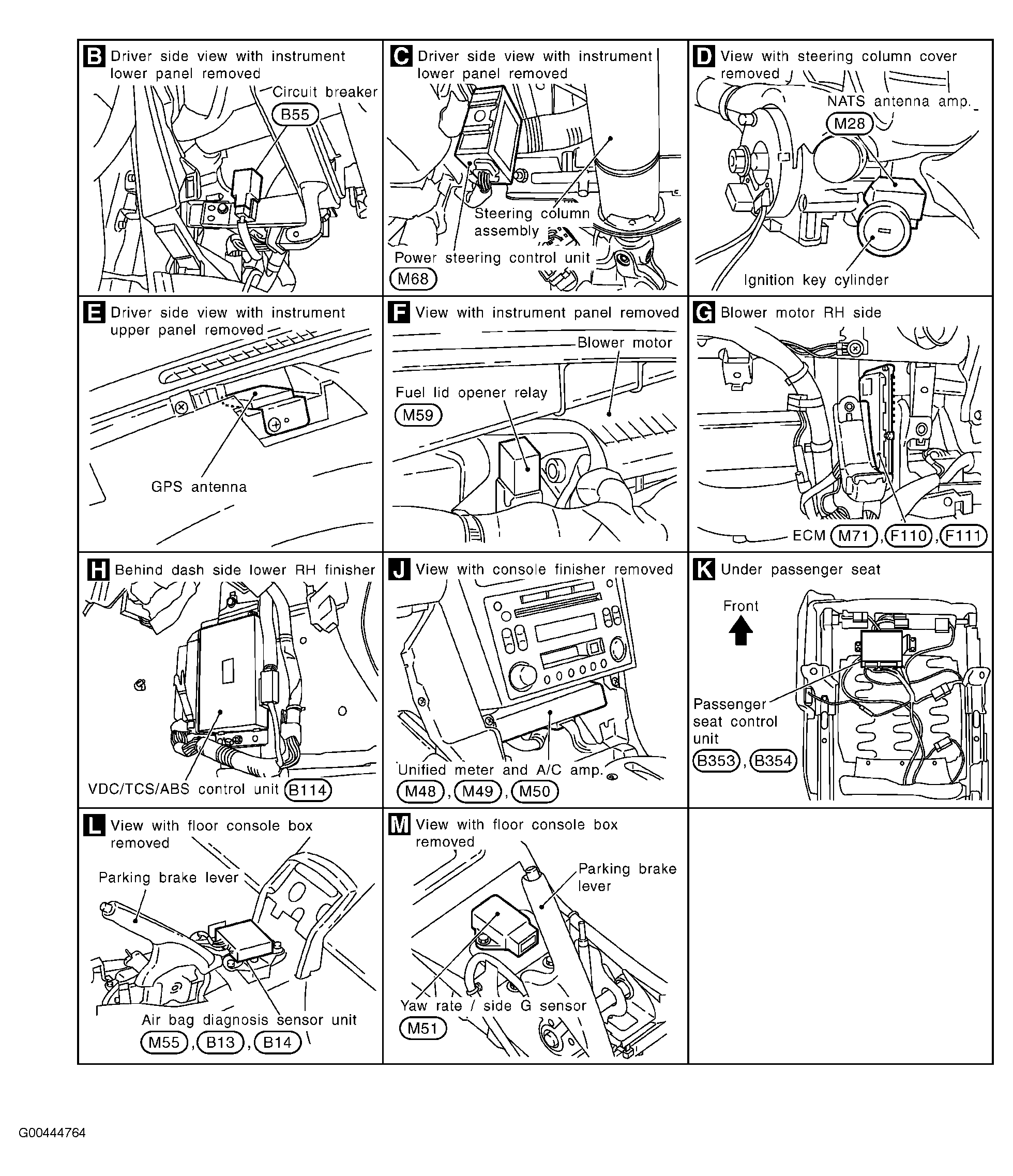

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breaker (Roadster) | Under left end of dash. See Figure. |
| Fuse Block (J/B) | Behind left kick panel. See Figure. |

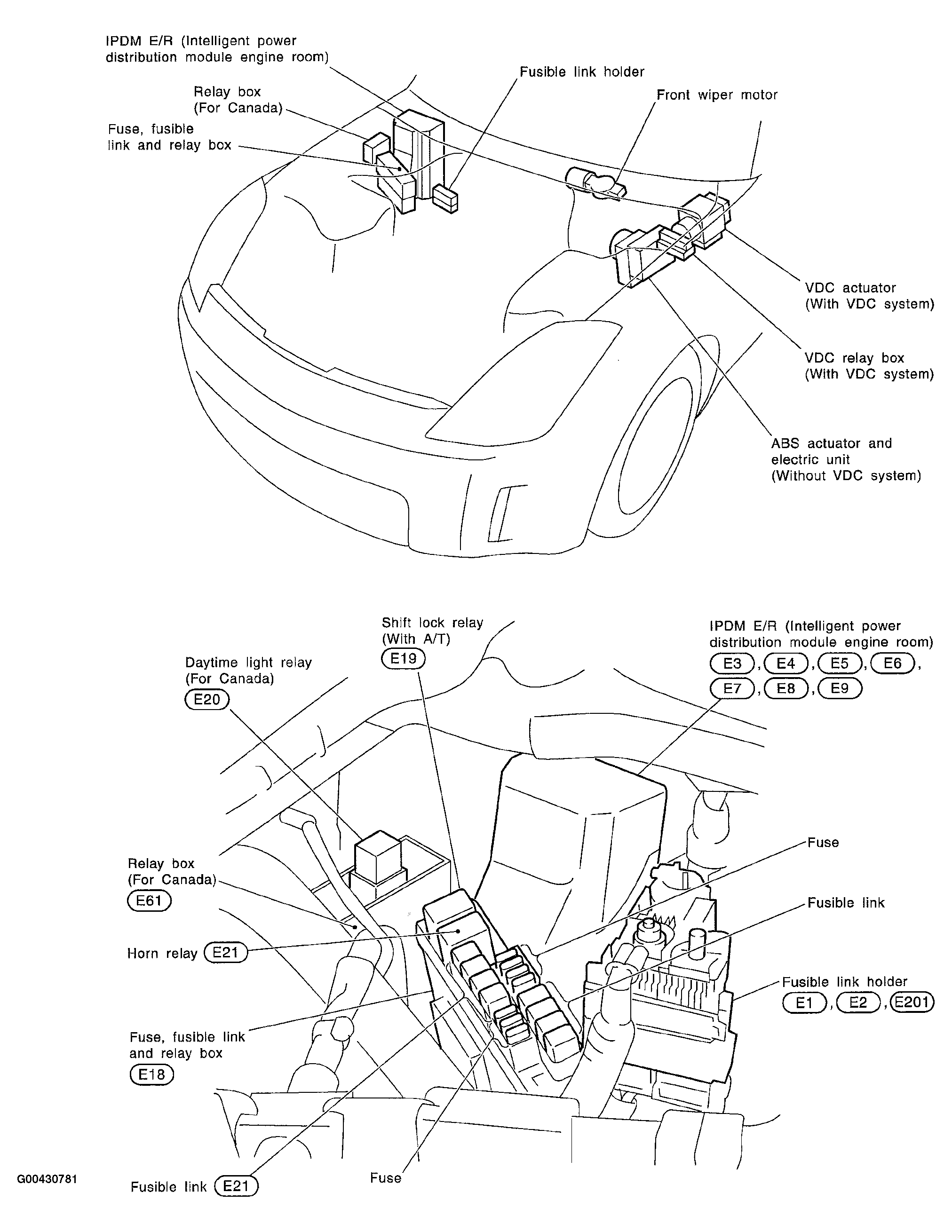

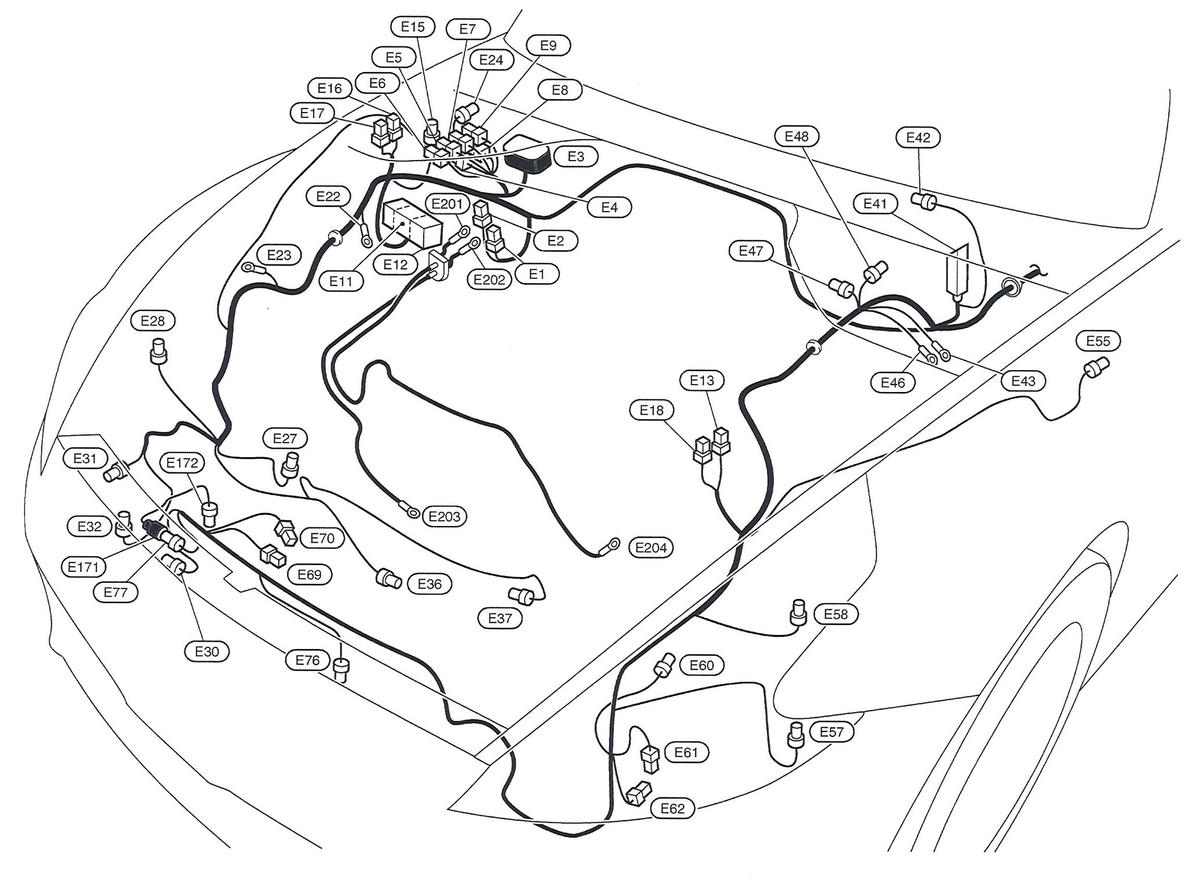

| Fuse, Fusible Link & Relay Box | Right rear side of engine compartment. See Figure. |
| Fusible Link Holder (350Z) | Right rear side of engine compartment. See Figure. |
| Fusible Link Holder (370Z) (F202) | Right rear side of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | Right rear corner of engine compartment. See Figure. |
| Relay Box (Canada) | Right rear of engine compartment. See Figure. |
| VDC Relay Box | Left rear of engine compartment. See Figure. |
