Evaporative Emission Line Drawing

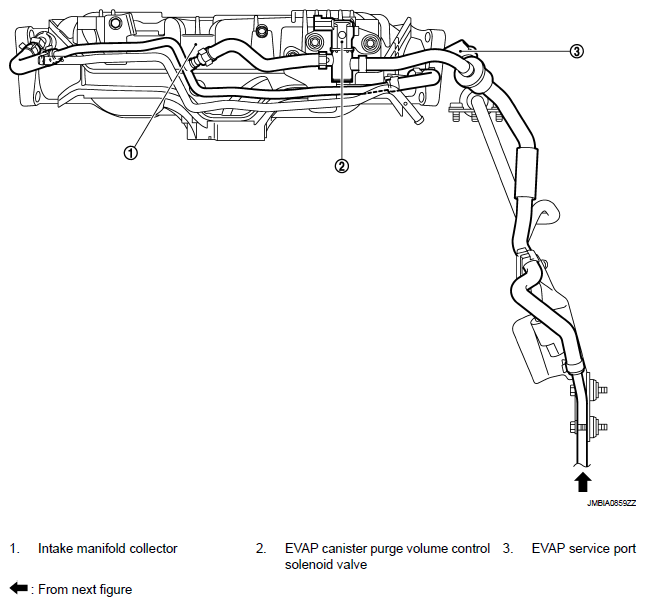

Fig 1: Evaporative Emission Line Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

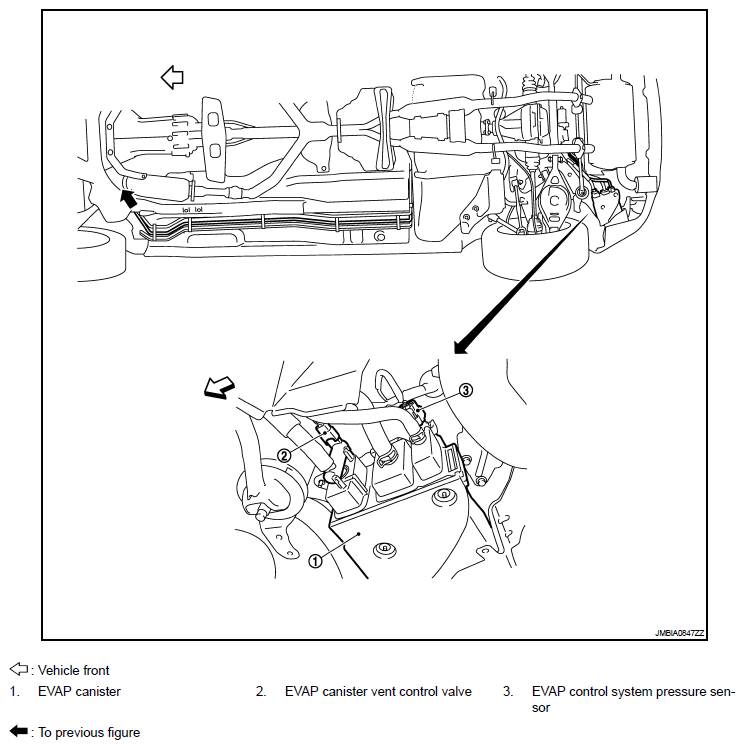

Fig 2: Identifying EVAP Canister Vent Control Valve, EVAP Control System Pressure Sensor And EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
