Section 61 (Hybrid Control System - Component Testing)
›
Removal And Installation
›
Frame Wire
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

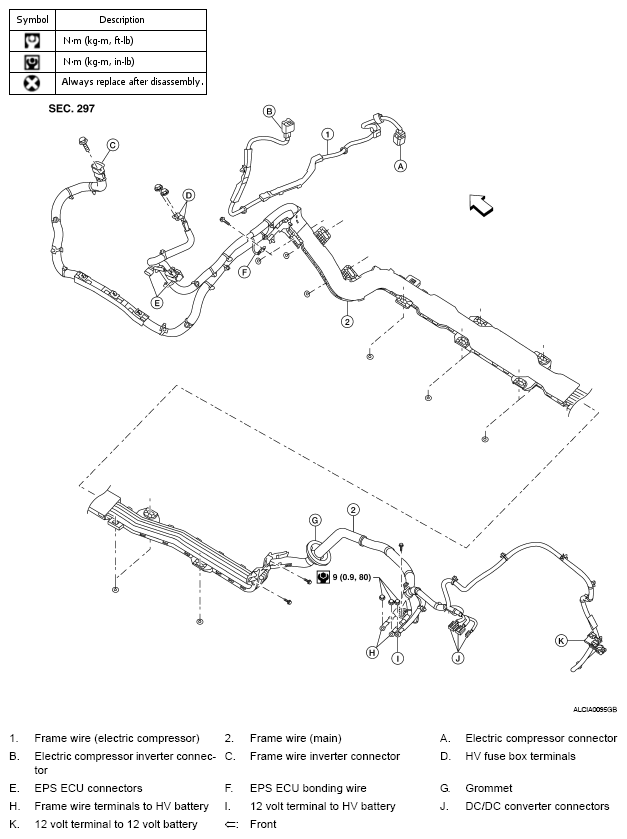

Fig 1: Exploded View Of Frame Wire With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
