General Information -- ALTIMA
›
Basic Inspection
›
Consult-III Checking System
›
Function and System Application
Function and System Application

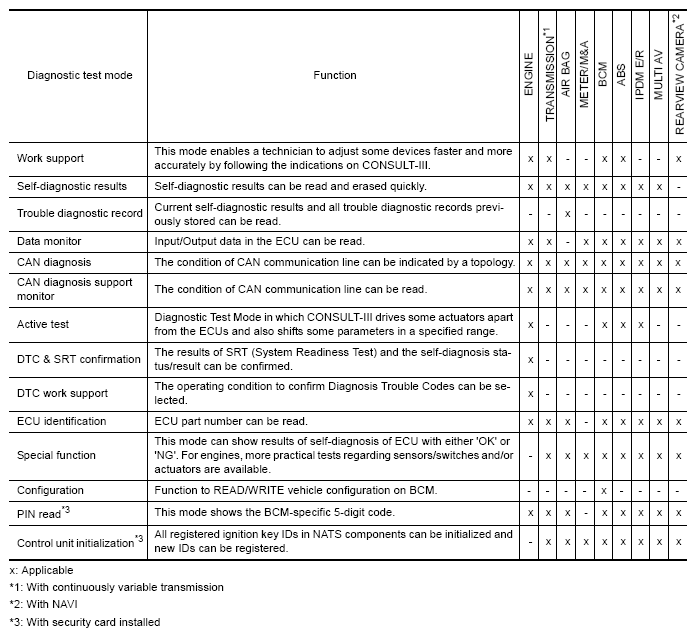

Fig 1: Function And System Application Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
