Accelerator Control System
›
Exploded View
Exploded View

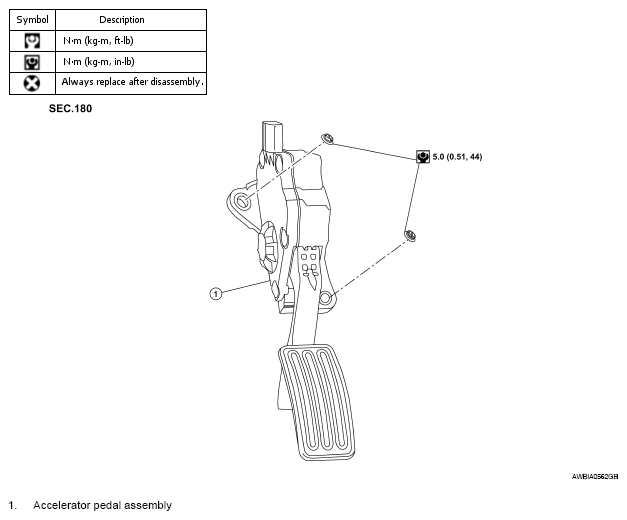

Fig 1: Accelerator Pedal Assembly With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
