Exploded View

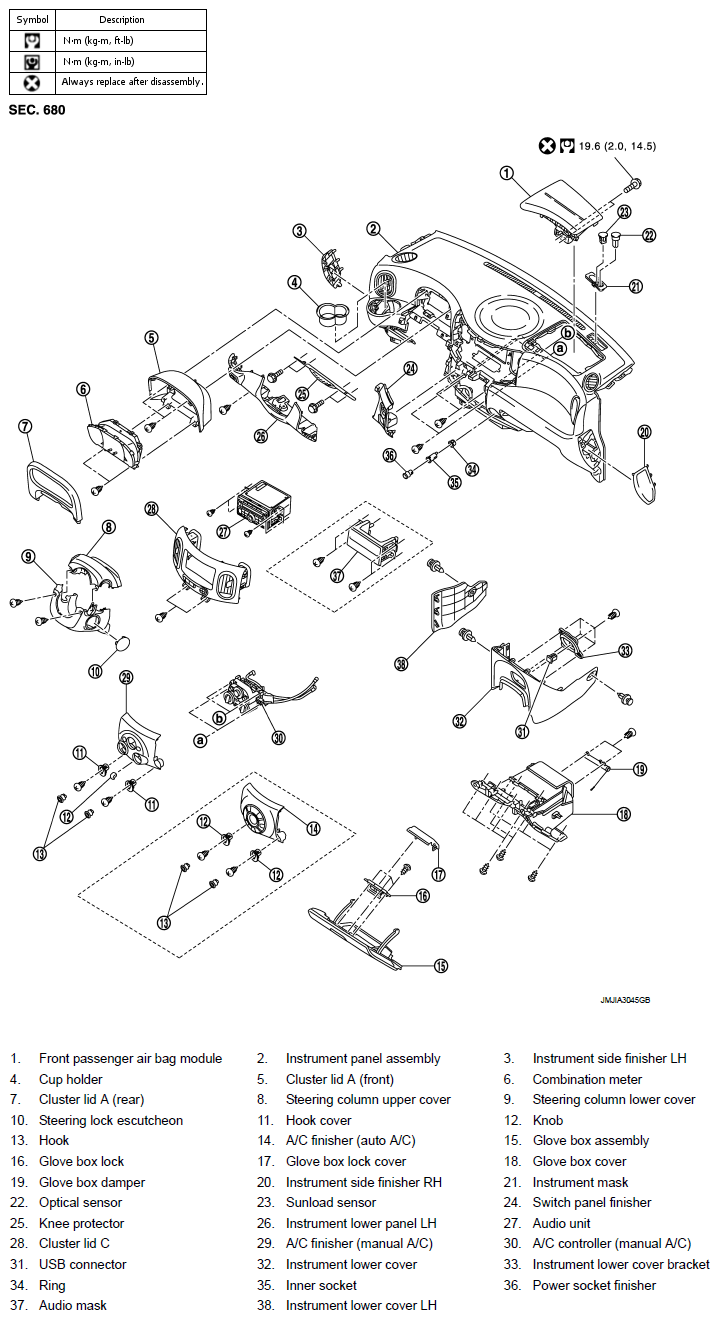

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications

G05915971

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
