System Description
›
Description
›
Engine Lubrication System
Engine Lubrication System

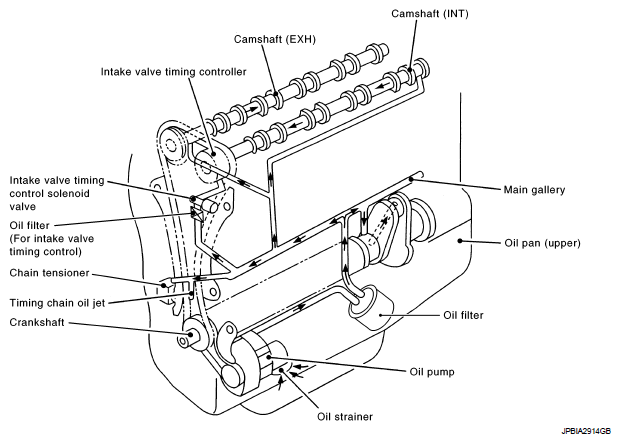

Fig 1: Identifying Engine Lubrication System Part Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
