Engine Control System - Component Testing And Removal And Installation
›
Removal And Installation
›
EVAP Canister
›
Exploded View
Exploded View

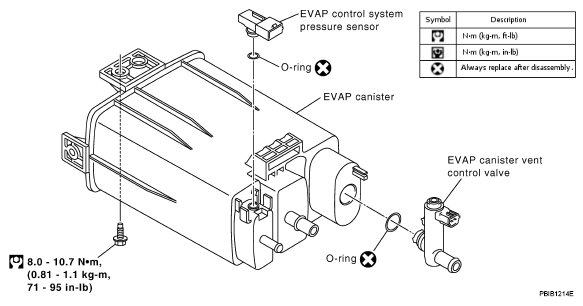

Fig 1: EVAP Canister Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
