System - Basic Engine Control System

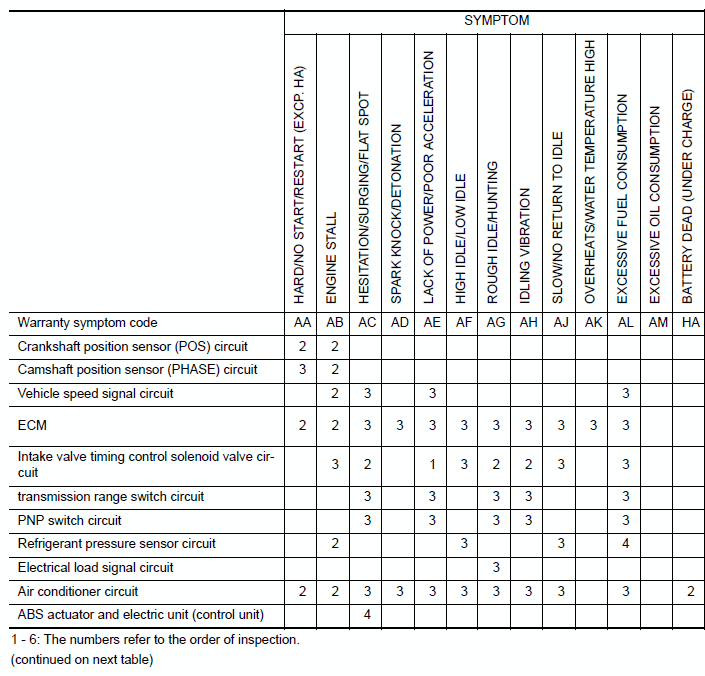

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

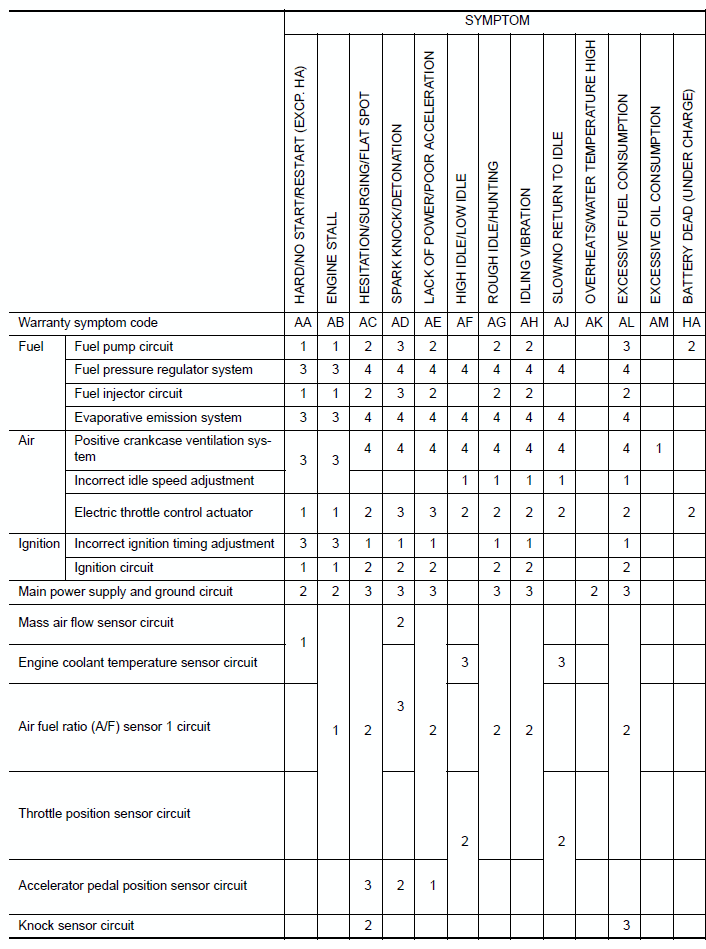

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
