Component Parts Location

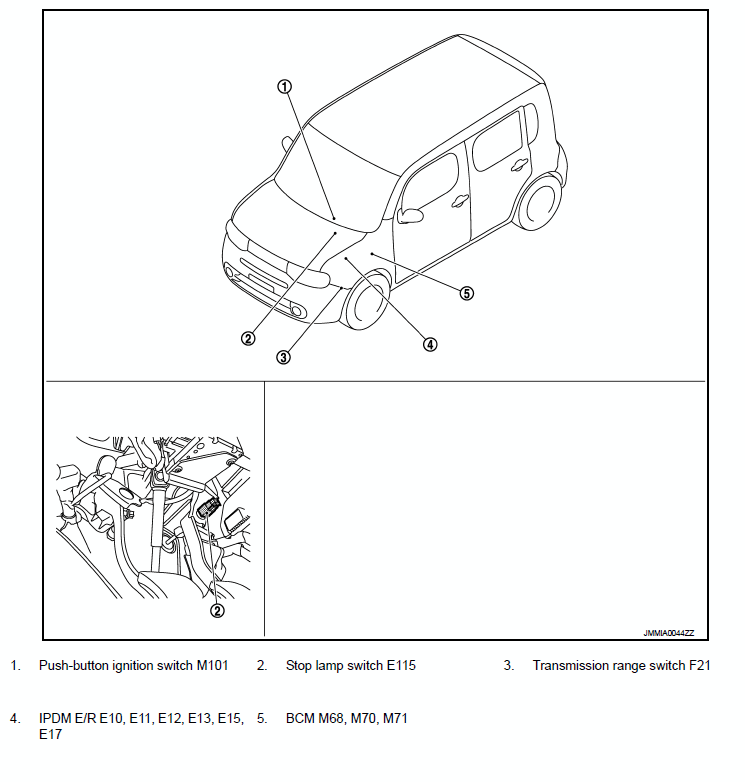

Fig 1: Identifying Power Distribution System Component Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

POWER DISTRIBUTION SYSTEM COMPONENT PARTS LOCATION TABLE

1.	Push-button ignition switch M101	2.	Stop lamp switch E115	3.	Transmission range switch F21 Refer to COMPONENT PARTS LOCATION
4.	IPDM E/R E10, E11, E12, E13, E15, E17 Refer to COMPONENT PARTS LOCATION	5.	BCM M68, M70, M71 Refer to COMPONENT PARTS LOCATION
