Exploded View: Disassembly

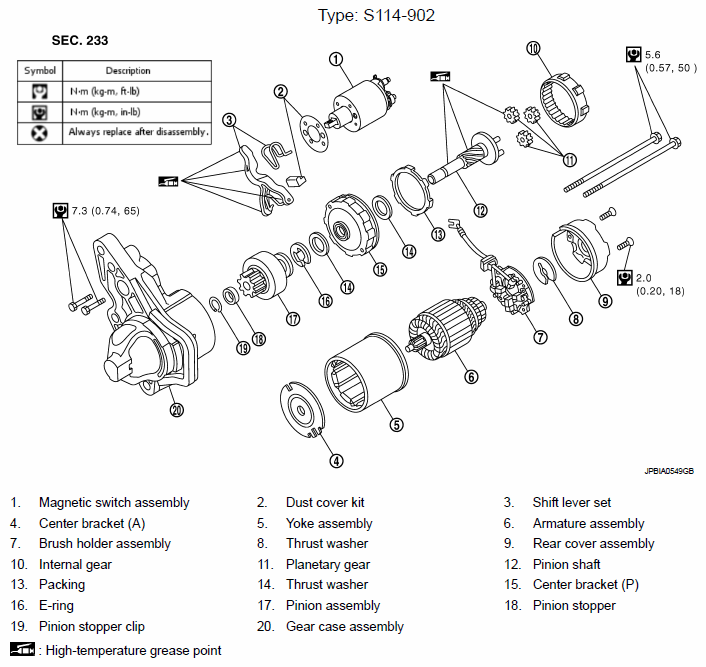

Fig 1: Starter Motor Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
