Component Views

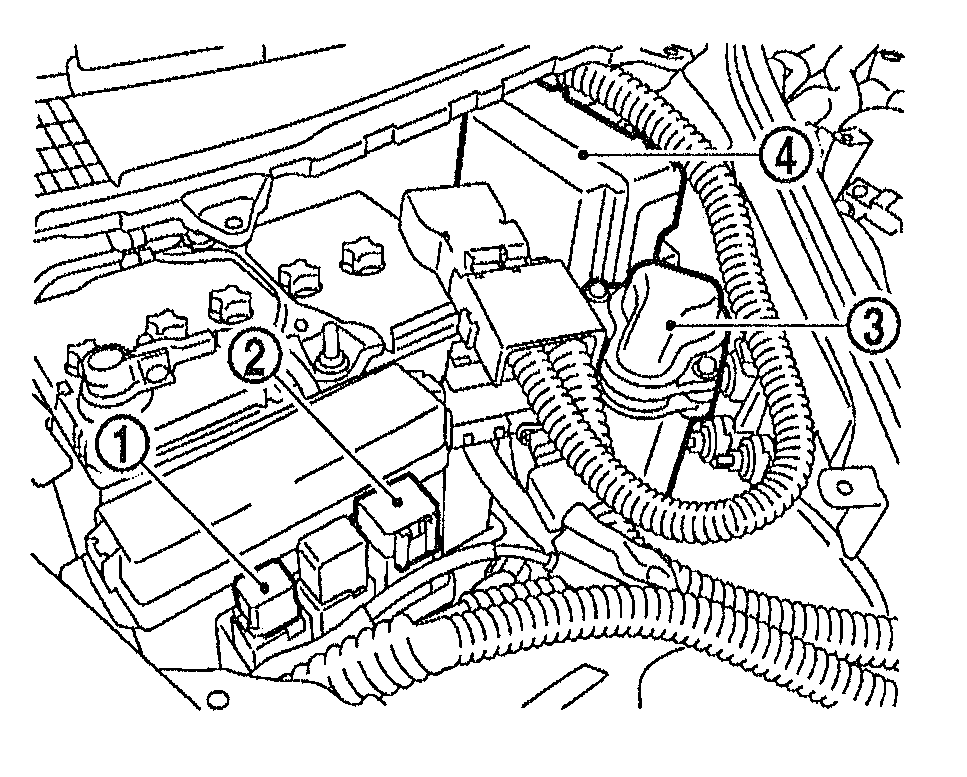

Fig 1: Identifying Components In Engine Room - Right Rear Side

Courtesy of NISSAN MOTOR CO., U.S.A.

Item No.	Component
1	Air cut solenoid valve relay
2	Air pump relay
3	Air pump cleaner
4	IPDM (Intelligent Power Distribution Module)

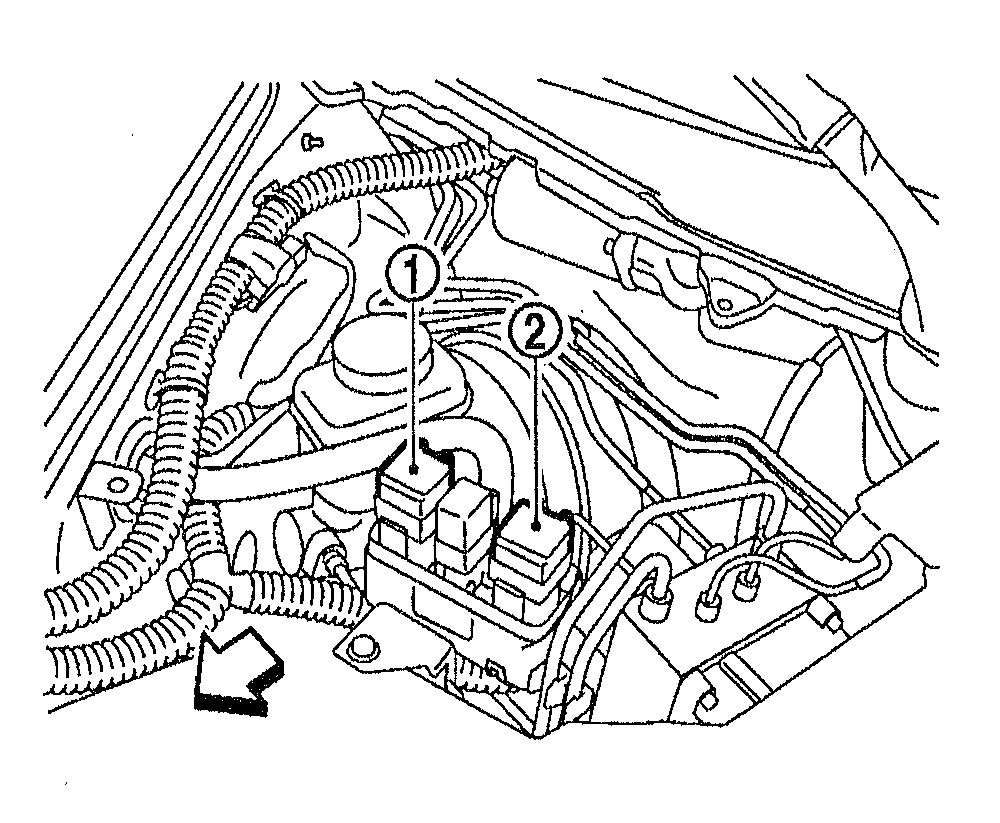

Fig 2: Identifying Components In Engine Room - Left Rear Side

Courtesy of NISSAN MOTOR CO., U.S.A.

Item No.	Component
1	Cooling fan relay-1
2	Cooling fan relay-2

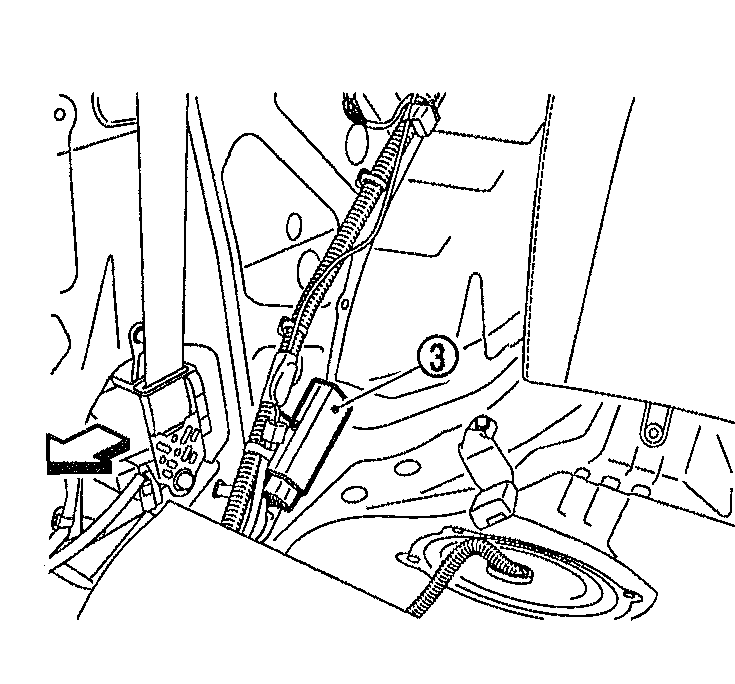

Fig 3: Identifying Fuel Pump Control Module - Right Side Lower B-Pillar

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Engine Room Electrical Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Item No.	Components
1	Air cut solenoid valve relay
2	Recirculation valve (Bank 1)
3	Refrigerant pressure sensor
4	Mass air flow sensor (with intake air temperature sensor) (Bank 1)
5	Power steering pressure sensor
6	EVAP canister purge volume control solenoid valve
7	Cooling fan motor
8	Cooling fan control module
9	Intake valve timing control solenoid valve
10	Turbocharger boost control solenoid valve
11	Mass air flow sensor (with intake air temperature sensor) (Bank 2)
12	Recirculation valve (Bank 2)
13	Turbocharger boost sensor (Bank 2)
14	Cooling fan relay-1
15	Cooling fan relay-2
16	Electric throttle control actuator (Bank 2)
17	Ignition coil (with power transistor) and spark plug (Bank 2)
18	Camshaft position sensor (PHASE) (Bank 2)
19	Air cut solenoid valve (Bank 2)
20	Crankshaft position sensor (POS)
21	Fuel injector (Bank 2)
22	Knock sensor
23	Engine oil temperature sensor
24	Fuel injector (Bank 1)
25	Engine coolant temperature sensor
26	A/F sensor 1 (Bank1)
27	Camshaft position sensor (PHASE) (Bank 1)
28	Air cut solenoid valve (Bank 1)
29	Manifold absolute pressure sensor
30	Ignition coil (with power transistor) and spark plug (Bank 1)
31	Electric throttle control actuator (Bank 1)
32	EVAP service port
33	Turbocharger boost sensor (Bank 1)
34	IPDM E/R
35	Air pump cleaner
36	Air pump
37	Air pump relay
