2009 Gt-R Alignment Service Information (NTB08-098A)
Publication date: 2008-11-03Reference number: NTB08-098A
2009 GT-R ALIGNMENT SERVICE INFORMATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): NTB08-098a, Date of Issue:
November 03, 2008
| NISSAN: | 2009 GT-R |
| CLASSIFICATION: | WT08-009a |
| APPLIED VEHICLE: | 2009 GT-R (R35) |
NOTE:
This bulletin has been amended. The specifications for rear alignment have been corrected. Please discard earlier versions of this bulletin.
SERVICE INFORMATION
Before performing an alignment on a GT-R:
- Review the Performance Optimization Service (POS) information in this bulletin.
- Review and understand the alignment specifications in this bulletin.NOTE:
- The GT-R requires 1,000 miles for suspension settling and break-in.
- Nissan recommends that alignment adjustments not be performed before vehicle delivery and/or before vehicle has been driven 1,000 miles.
Performance Optimization Service (POS) Information
In addition to the regular maintenance recommended by Nissan, the GT-R requires the following special inspections at 1,000 miles, 12 months, 24 months, and 36 months:
- Wheel alignment inspection and adjustment (including tire pressure adjustment)
- Engine settings (balancing right and left air flow)
- Transmission settingsNOTE:
- The inspections listed above will be performed free of charge for labor at a GT-R certified Nissan dealer only.
- When submitting a POS claim, use only the Claims Coding in this bulletin.
- Inspection of these areas thereafter are recommended every 12 months or 12,000 miles (whichever comes first) at the customer's expense.

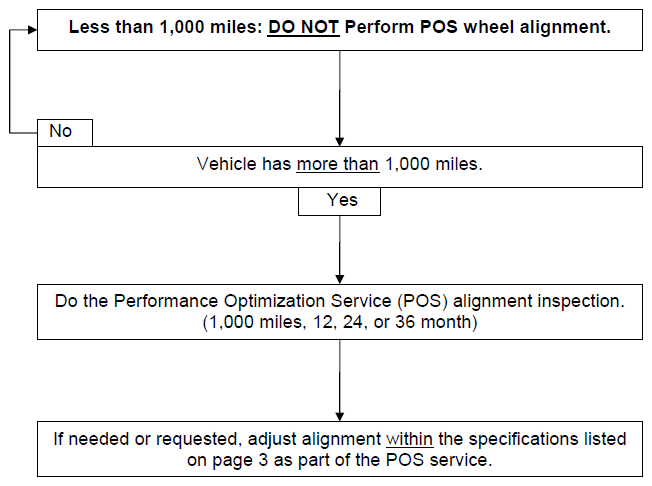

POS Alignment Inspection / adjustment
Alignment Specification
FRONT
ALIGNMENT SPECIFICATION - FRONT
| 1,000 mile inspection | 12, 24, and 36 month inspection | |||
|---|---|---|---|---|
| Performance (Sport Driving) | Camber (Degree Minute) | Minimum | -1° 47' | -1° 47' |
| Nominal | -1° 37' | -1° 37' | ||
| Maximum | -1° 17' | -1° 27' | ||
| Left and Right Difference | 0° 10' or less | 0° 10' or less | ||
| Caster (Degree Minute) | Minimum | 5° 14' | 5° 14' | |
| Nominal | 5° 44' | 5° 44' | ||
| Maximum | 6° 14' | 6° 14' | ||
| Left and Right Difference | 0° 30' or less | 0° 30' or less | ||
| King pin Inclination (Degree Minute) | Minimum | 9° 14' | 9° 14' | |
| Nominal | 9° 24' | 9° 24' | ||
| Maximum | 9° 34' | 9° 34' | ||
| Total toe-in (Distance) | Minimum | Out 0.9 mm | Out 0.9 mm | |
| Nominal | In 0.3 mm | In 0.3 mm | ||
| Maximum | In 1.5 mm | In 1.5 mm | ||
| Everyday driving | Camber (Degree Minute) | Minimum | -1° 32' | |
| Nominal | -1° 29' | |||
| Maximum | -1° 27' | |||
| Left and Right Difference | 0° 10' or less | |||
| Caster (Degree Minute) | Minimum | 5° 14' | ||
| Nominal | 5° 44' | |||
| Maximum | 6° 14' | |||
| Left and Right Difference | 0° 30' or less | |||
| King pin Inclination (Degree Minute) | Minimum | 9° 14' | ||
| Nominal | 9° 24' | |||
| Maximum | 9° 34' | |||
| Total toe-in (Distance) | Minimum | Out 0.9 mm | ||
| Nominal | In 0.3 mm | |||
| Maximum | In 1.5 mm | |||
REAR
ALIGNMENT SPECIFICATION - REAR
| Camber (Degree Minute) | Minimum | -1° 44' |
| Nominal | -1° 34' | |
| Maximum | -1° 24' | |
| Left and Right Difference | 0° 20' or less | |
| Total toe-in (Distance) | Minimum | Out 0.3 mm |
| Nominal | In 1.7 mm | |
| Maximum | In 3.7 mm |
NOTE:
- Nissan recommends that alignment adjustments not be performed before vehicle delivery and/or before vehicle has been driven 1,000 miles.
- The Service Manual alignment specifications will be amended to match this bulletin. Until the amendment is completed, some of the above specs may be slightly different then those in the Service Manual.
Claims Information (For Performance Optimization Service - POS)
Submit a "CM" line claim using the following claims coding:
"CM" I.D.: PB064 (1,000 mile), PB065 (12 Months), PB066 (24 months), or PB067 (36 months)
CLAIMS INFORMATION
| DESCRIPTION / INTERVAL | OP CODE | FRT | ||
|---|---|---|---|---|
| GT-R 1st POS 1,000 Miles (1,000 - 2500 miles) | PB0640 (1) | 1.4 | ||
| Add for 2 wheel Alignment w/o removing undercover | PB0641 ((1)Combination Op) | 0.4 | ||
| Add for 2 wheel Alignment with removal of undercover | PB0642 ((1)Combination Op) | 0.9 | ||
| Add for 4 wheel Alignment w/o removing undercover | PB0643 ((1)Combination Op) | 0.6 | ||
| Add for 4 wheel Alignment with removal of undercover | PB0644 ((1)Combination Op) | 1.3 | ||
| GT-R POS 12 Months (9-15 months) | PB0650 (1) | 1.4 | ||
| Add for 2 wheel Alignment w/o removing undercover | PB0651 ((1)Combination Op) | 0.4 | ||
| Add for 2 wheel Alignment with removal of undercover | PB0652 ((1)Combination Op) | 0.9 | ||
| Add for 4 wheel Alignment w/o removing undercover | PB0653 ((1)Combination Op) | 0.6 | ||
| Add for 4 wheel Alignment with removal of undercover | PB0654 ((1)Combination Op) | 1.3 | ||
| GT-R POS 24 Months (21-27 months) | PB0660 (1) | 1.4 | ||
| Add for 2 wheel Alignment w/o removing undercover | PB0661 ((1)Combination Op) | 0.4 | ||
| Add for 2 wheel Alignment with removal of undercover | PB0662 ((1)Combination Op) | 0.9 | ||
| Add for 4 wheel Alignment w/o removing undercover | PB0663 ((1)Combination Op) | 0.6 | ||
| Add for 4 wheel Alignment with removal of undercover | PB0664 ((1)Combination Op) | 1.3 | ||
| GT-R POS 36 Months (33-39 months) | PB0670 (1) | 1.4 | ||
| Add for 2 wheel Alignment w/o removing undercover | PB0671 ((1)Combination Op) | 0.4 | ||
| Add for 2 wheel Alignment with removal of undercover | PB0672 ((1)Combination Op) | 0.9 | ||
| Add for 4 wheel Alignment w/o removing undercover | PB0673 ((1)Combination Op) | 0.6 | ||
| Add for 4 wheel Alignment with removal of undercover | PB0674 ((1)Combination Op) | 1.3 | ||
|
||||
NOTE:
Alignment inspection or adjustment-except for the Performance Optimization Service intervals-is covered by the standard 12 month, 12,000 mile adjusment warranty.
