Wiring Diagram---ENGINE CONTROL SYSTEM---

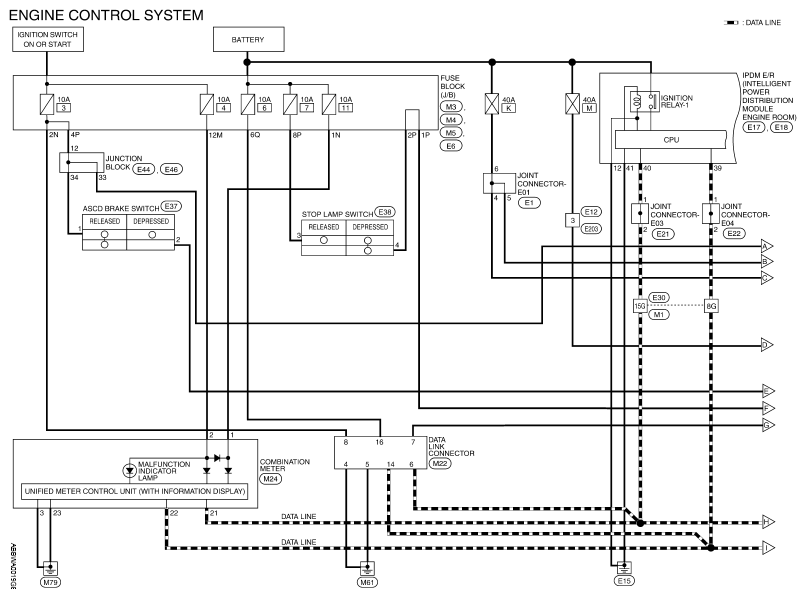

Fig 1: Engine Control System - Wiring Diagram (1 Of 8)

G05870042

Courtesy of NISSAN MOTOR CO., U.S.A.

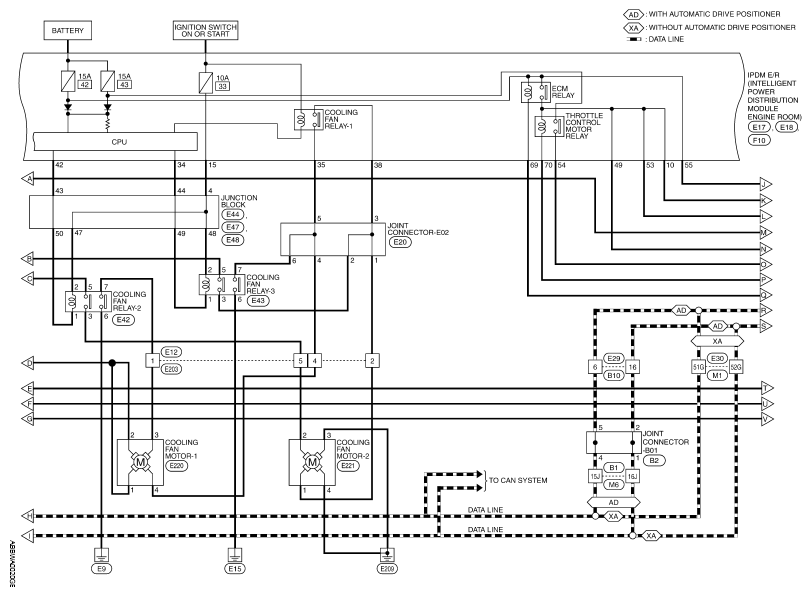

Fig 2: Engine Control System - Wiring Diagram (2 Of 8)

G05870043

Courtesy of NISSAN MOTOR CO., U.S.A.

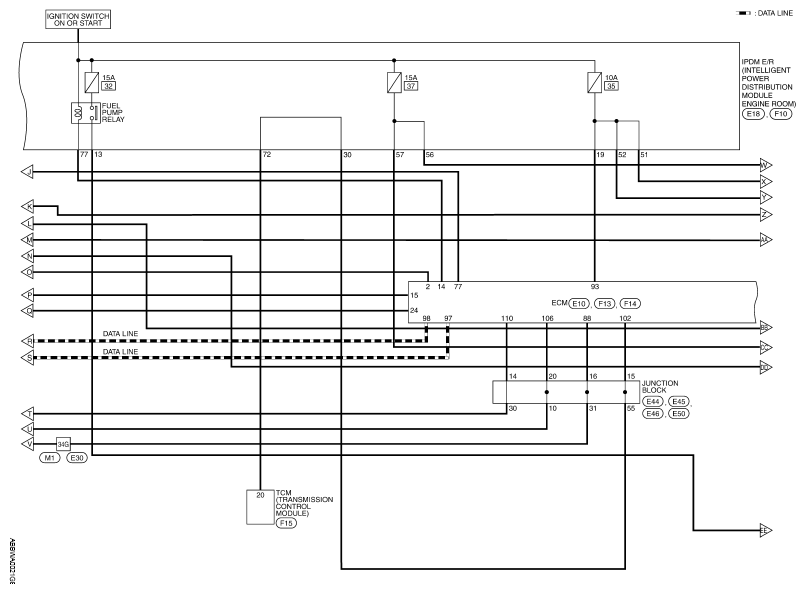

Fig 3: Engine Control System - Wiring Diagram (3 Of 8)

G05870044

Courtesy of NISSAN MOTOR CO., U.S.A.

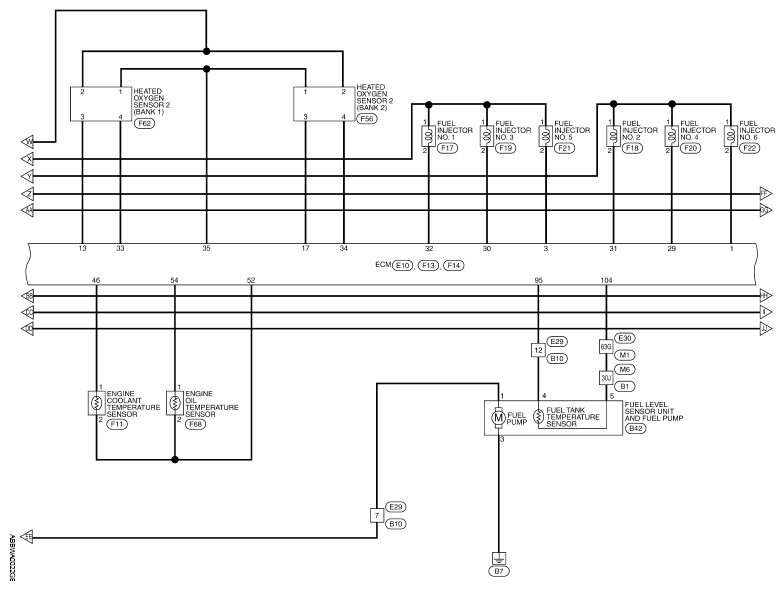

Fig 4: Engine Control System - Wiring Diagram (4 Of 8)

G05870045

Courtesy of NISSAN MOTOR CO., U.S.A.

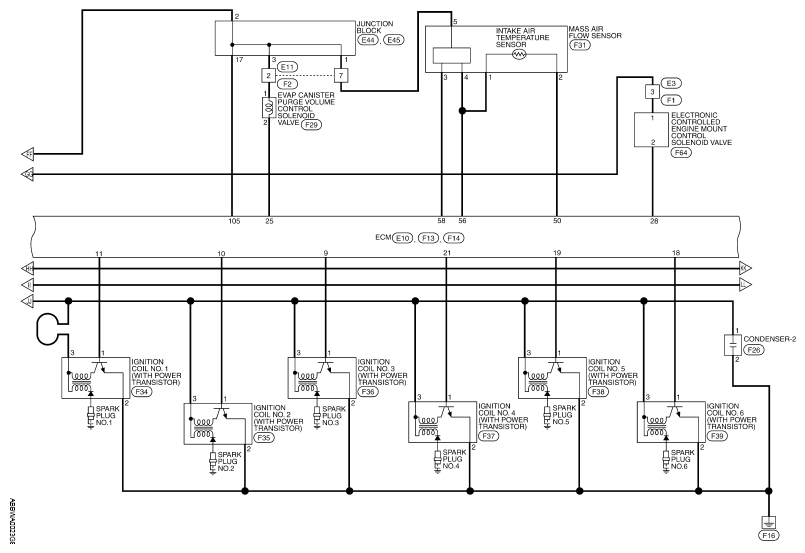

Fig 5: Engine Control System - Wiring Diagram (5 Of 8)

G05870046

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine Control System - Wiring Diagram (6 Of 8)

G05870047

Courtesy of NISSAN MOTOR CO., U.S.A.

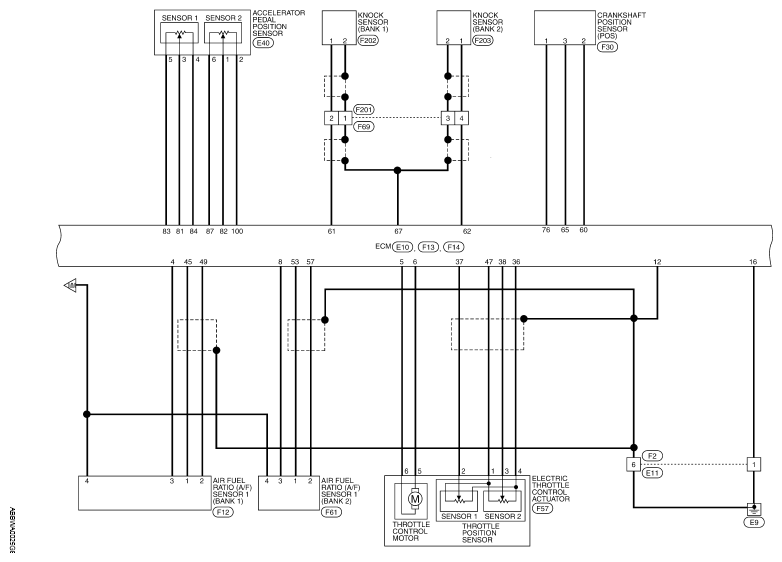

Fig 7: Engine Control System - Wiring Diagram (7 Of 8)

G05870048

Courtesy of NISSAN MOTOR CO., U.S.A.

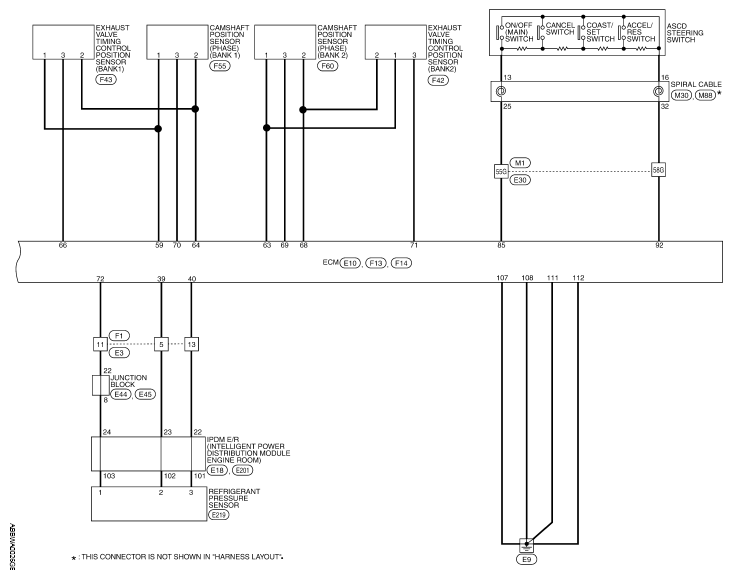

Fig 8: Engine Control System - Wiring Diagram (8 Of 8)

G05870049

Courtesy of NISSAN MOTOR CO., U.S.A.

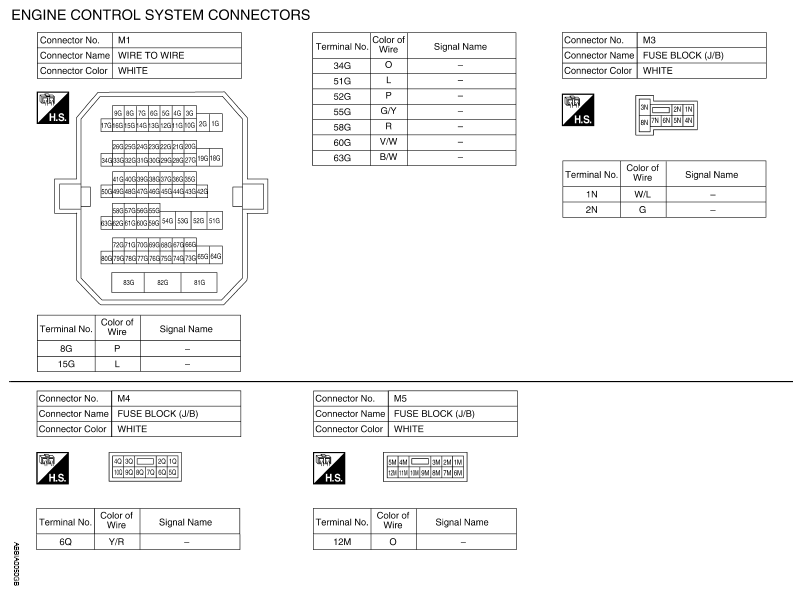

Fig 9: Identifying Engine Control System Connector Terminals (1 Of 19)

G05870050

Courtesy of NISSAN MOTOR CO., U.S.A.

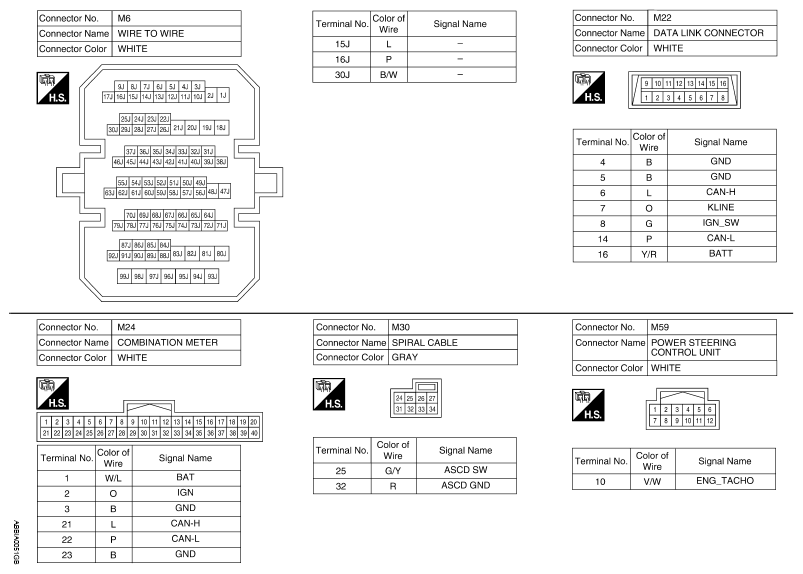

Fig 10: Identifying Engine Control System Connector Terminals (2 Of 19)

G05870051

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Connector Terminals (3 Of 19)

G05870052

Courtesy of NISSAN MOTOR CO., U.S.A.

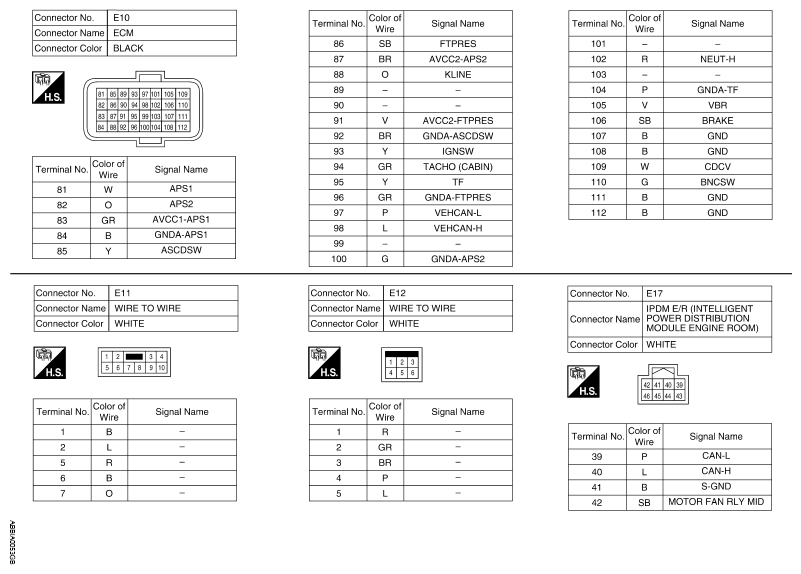

Fig 12: Identifying Engine Control System Connector Terminals (4 Of 19)

G05870053

Courtesy of NISSAN MOTOR CO., U.S.A.

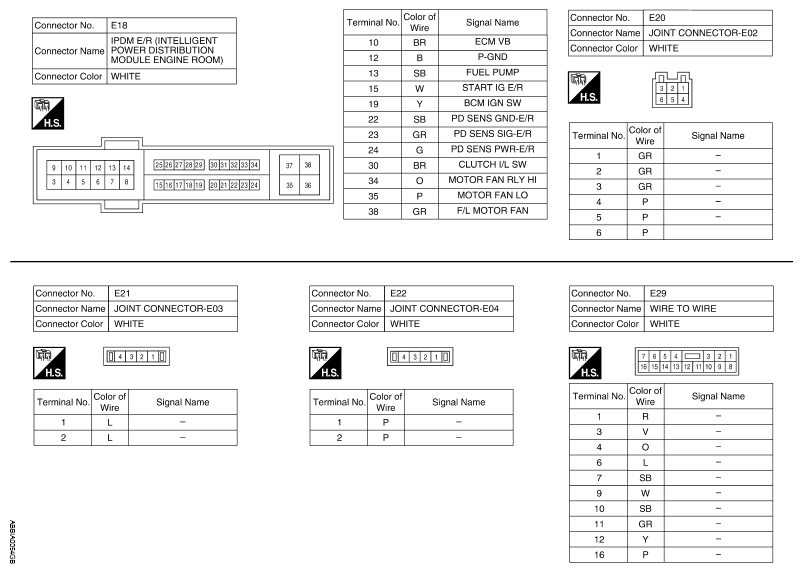

Fig 13: Identifying Engine Control System Connector Terminals (5 Of 19)

G05870054

Courtesy of NISSAN MOTOR CO., U.S.A.

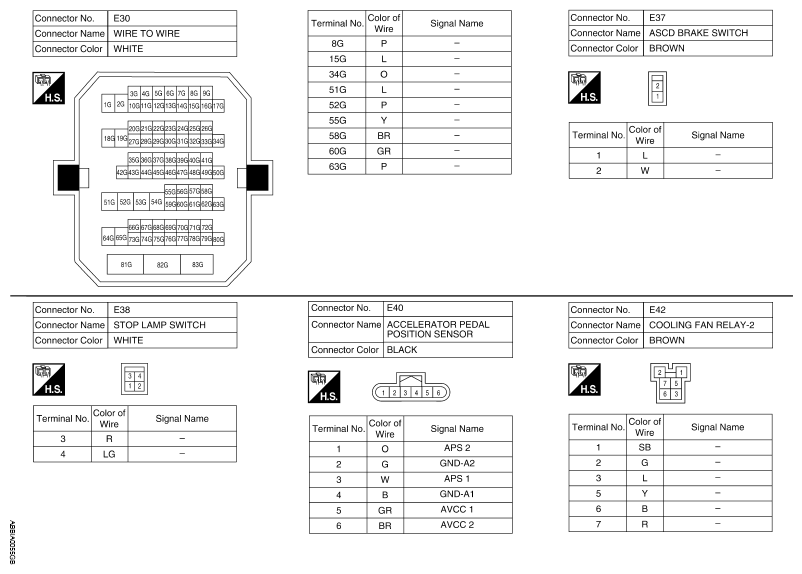

Fig 14: Identifying Engine Control System Connector Terminals (6 Of 19)

G05870055

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Connector Terminals (7 Of 19)

G05870056

Courtesy of NISSAN MOTOR CO., U.S.A.

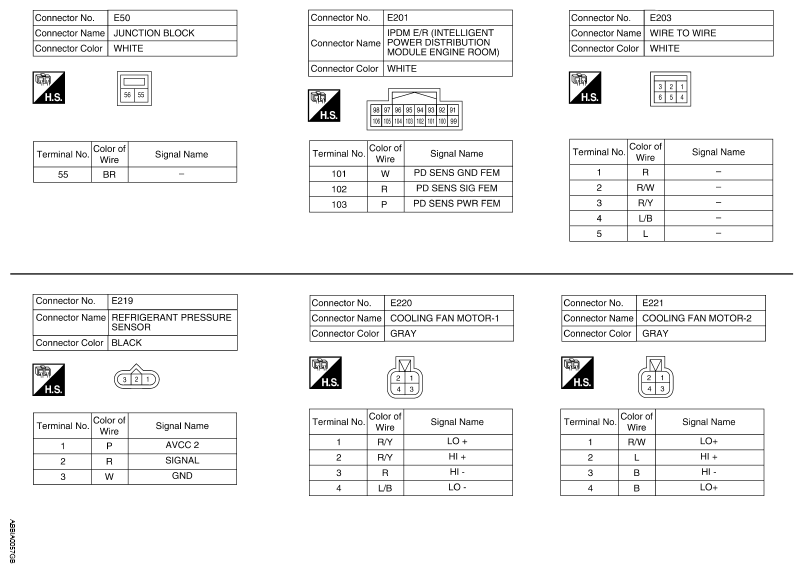

Fig 16: Identifying Engine Control System Connector Terminals (8 Of 19)

G05870057

Courtesy of NISSAN MOTOR CO., U.S.A.

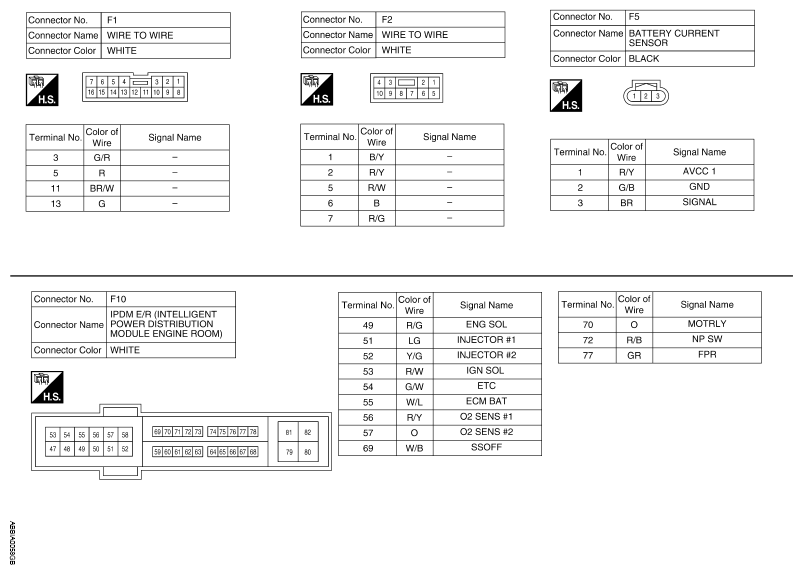

Fig 17: Identifying Engine Control System Connector Terminals (9 Of 19)

G05870058

Courtesy of NISSAN MOTOR CO., U.S.A.

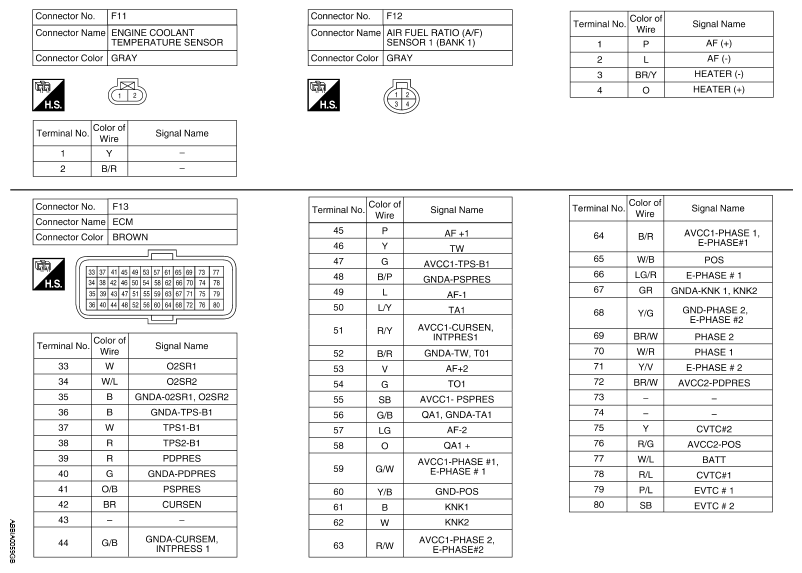

Fig 18: Identifying Engine Control System Connector Terminals (10 Of 19)

G05870059

Courtesy of NISSAN MOTOR CO., U.S.A.

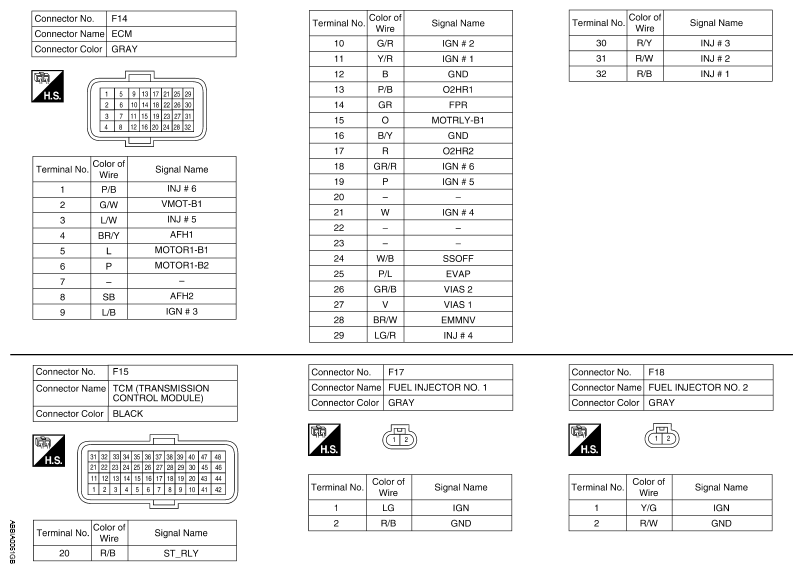

Fig 19: Identifying Engine Control System Connector Terminals (11 Of 19)

G05870060

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Connector Terminals (12 Of 19)

G05870061

Courtesy of NISSAN MOTOR CO., U.S.A.

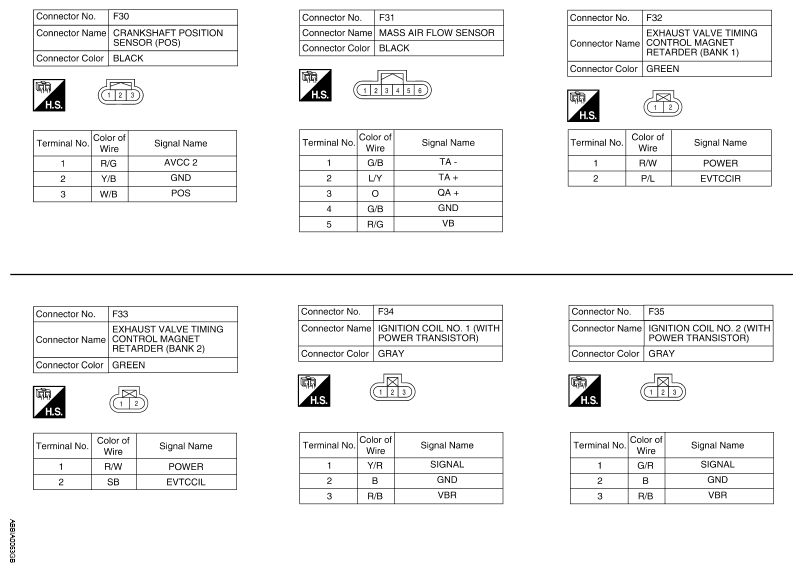

Fig 21: Identifying Engine Control System Connector Terminals (13 Of 19)

G05870062

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Engine Control System Connector Terminals (14 Of 19)

G05870063

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Identifying Engine Control System Connector Terminals (15 Of 19)

G05870064

Courtesy of NISSAN MOTOR CO., U.S.A.

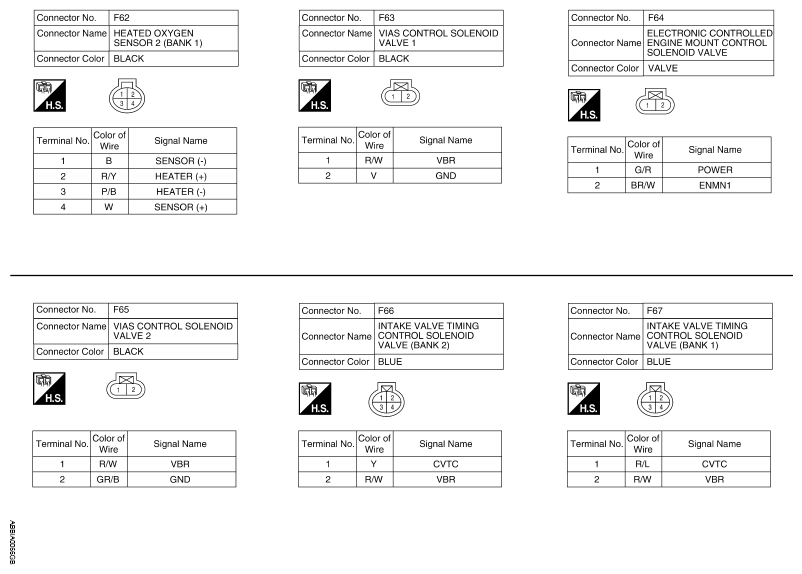

Fig 24: Identifying Engine Control System Connector Terminals (16 Of 19)

G05870065

Courtesy of NISSAN MOTOR CO., U.S.A.

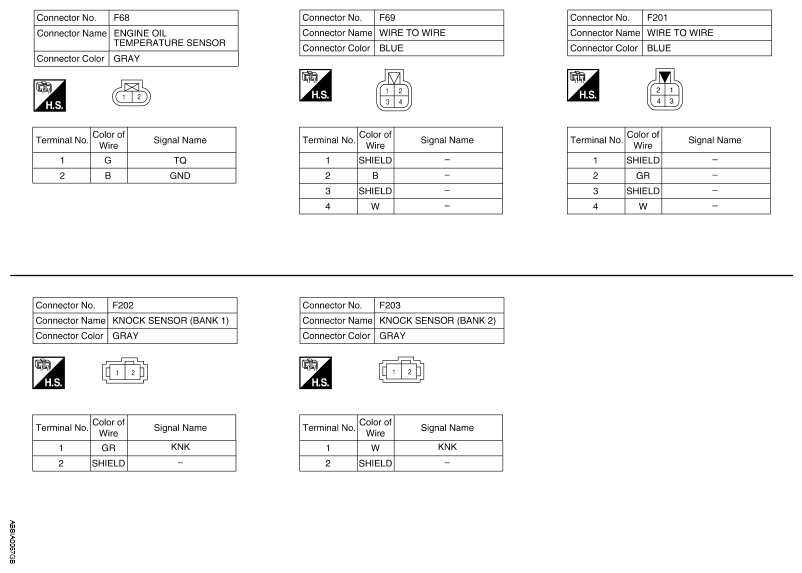

Fig 25: Identifying Engine Control System Connector Terminals (17 Of 19)

G05870066

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 26: Identifying Engine Control System Connector Terminals (18 Of 19)

G05870067

Courtesy of NISSAN MOTOR CO., U.S.A.

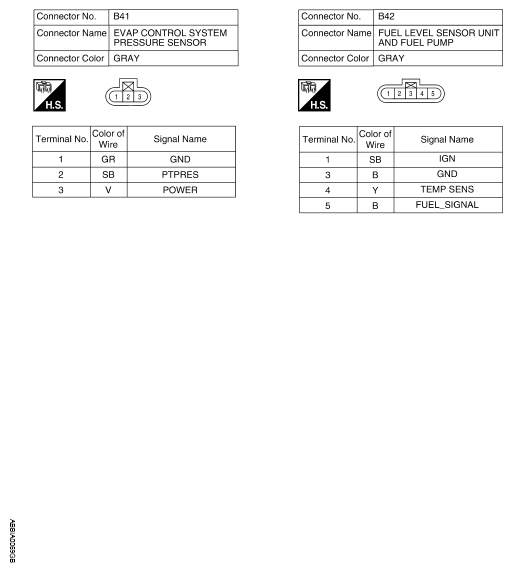

Fig 27: Identifying Engine Control System Connector Terminals (19 Of 19)

G05870068

Courtesy of NISSAN MOTOR CO., U.S.A.
