Engine Control System - Introduction
›
Function Diagnosis
›
Air Conditioning Cut Control
›
Component Parts Location
Component Parts Location

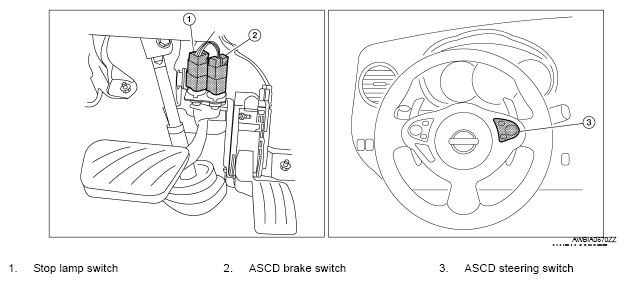

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

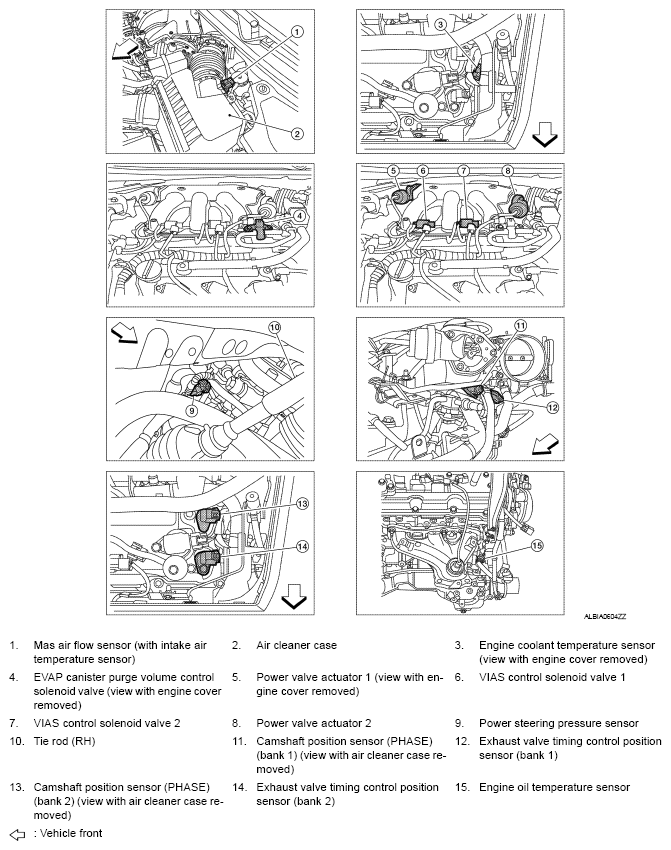

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

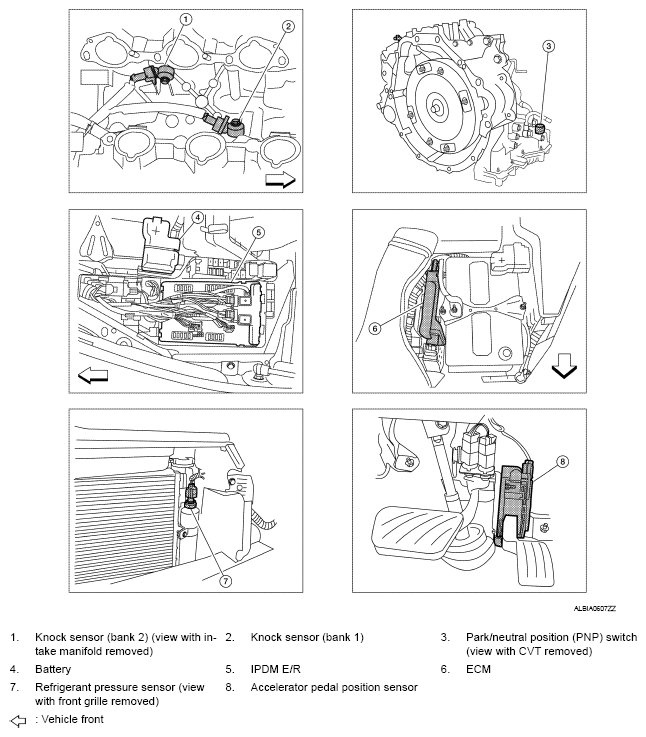

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

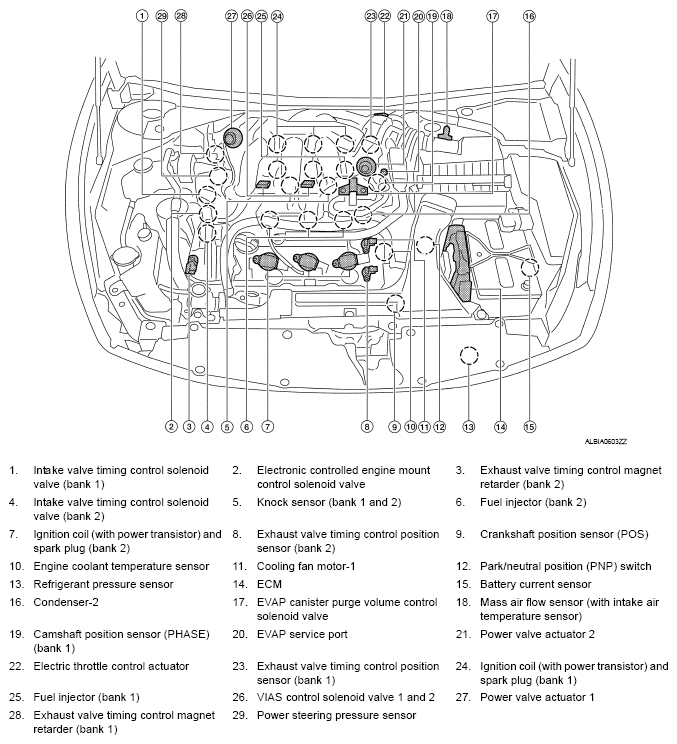

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

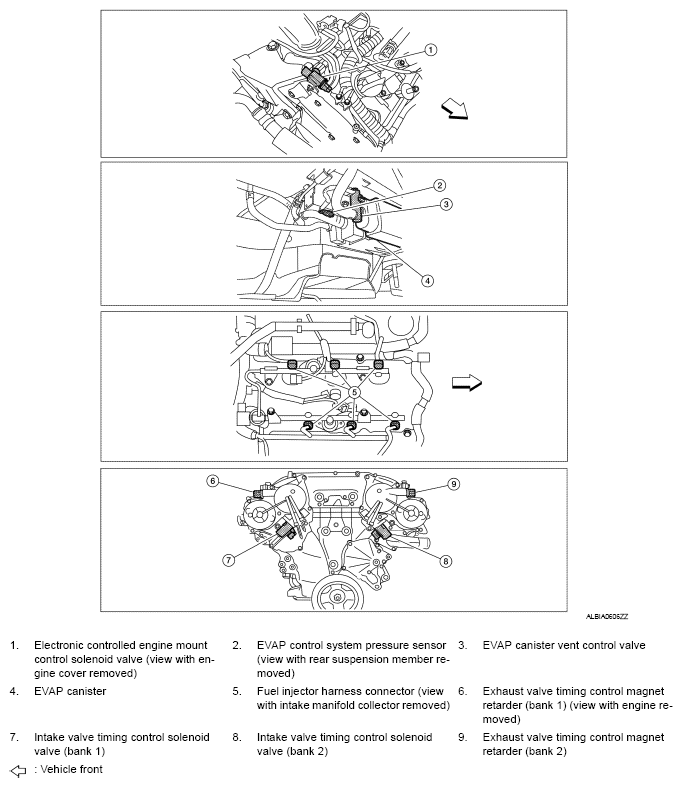

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

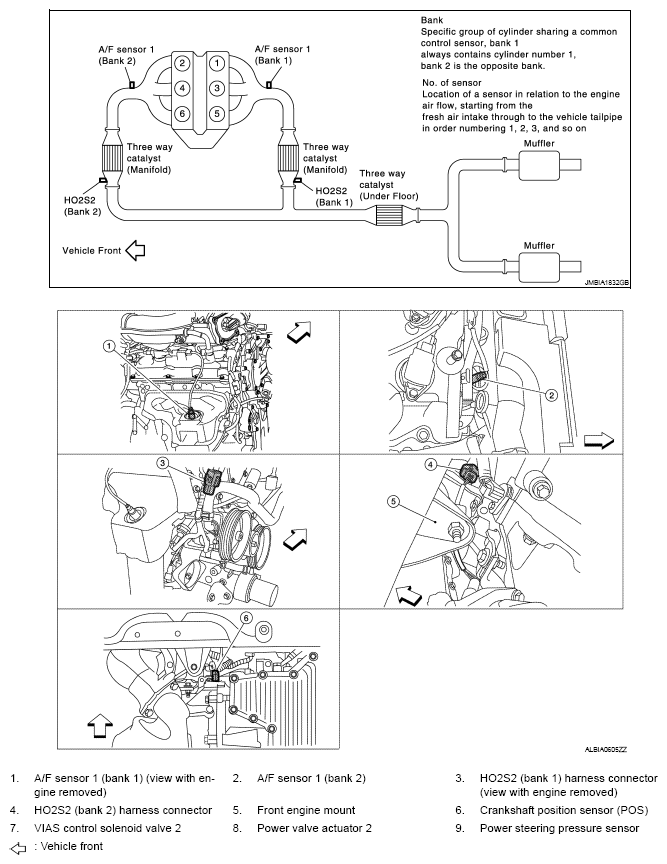

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
