Engine Control System - Introduction
›
Function Diagnosis
›
Evaporative Emission System
›
Component Parts Location
Component Parts Location

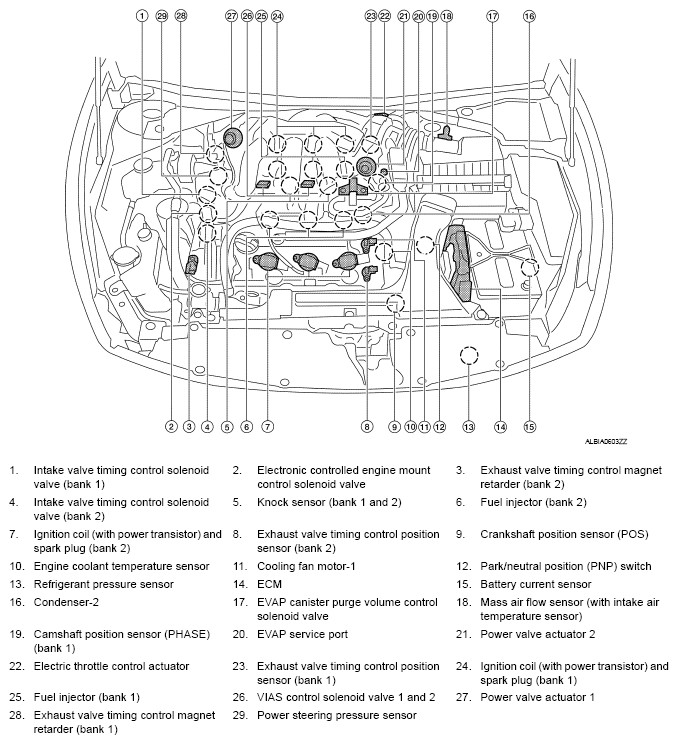

Fig 1: Identifying Evaporative Emission System Component Parts Location (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

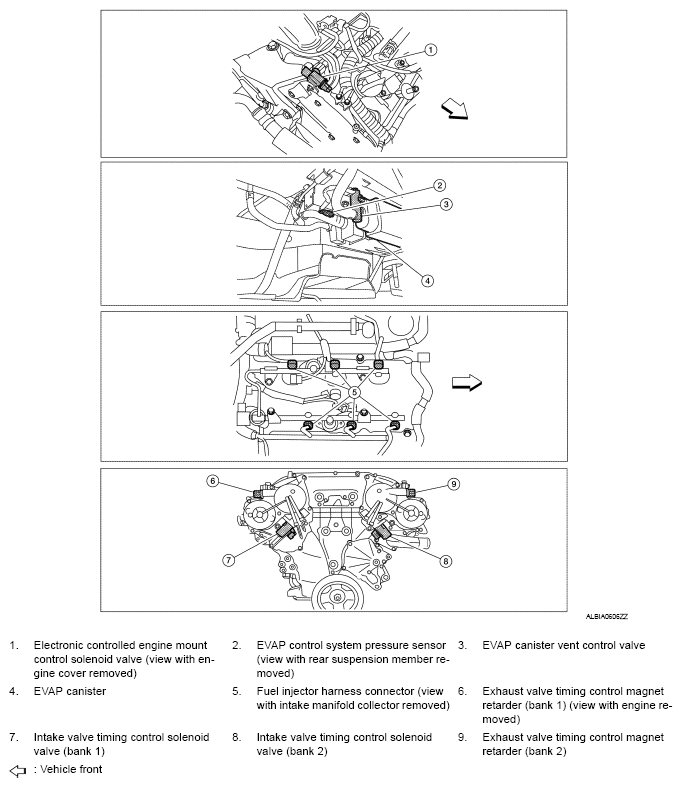

Fig 2: Identifying Evaporative Emission System Component Parts Location (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

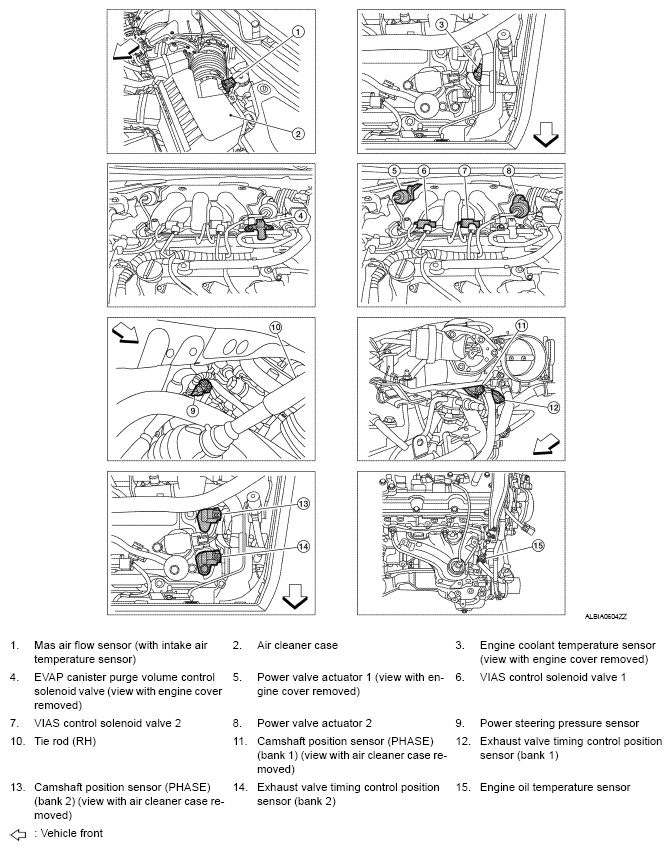

Fig 3: Identifying Evaporative Emission System Component Parts Location (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Evaporative Emission System Component Parts Location (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

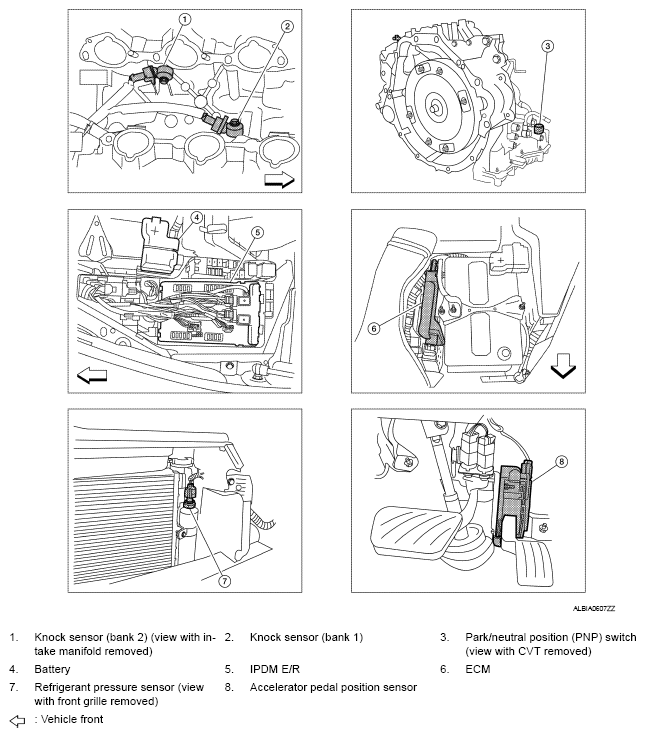

Fig 5: Identifying Evaporative Emission System Component Parts Location (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

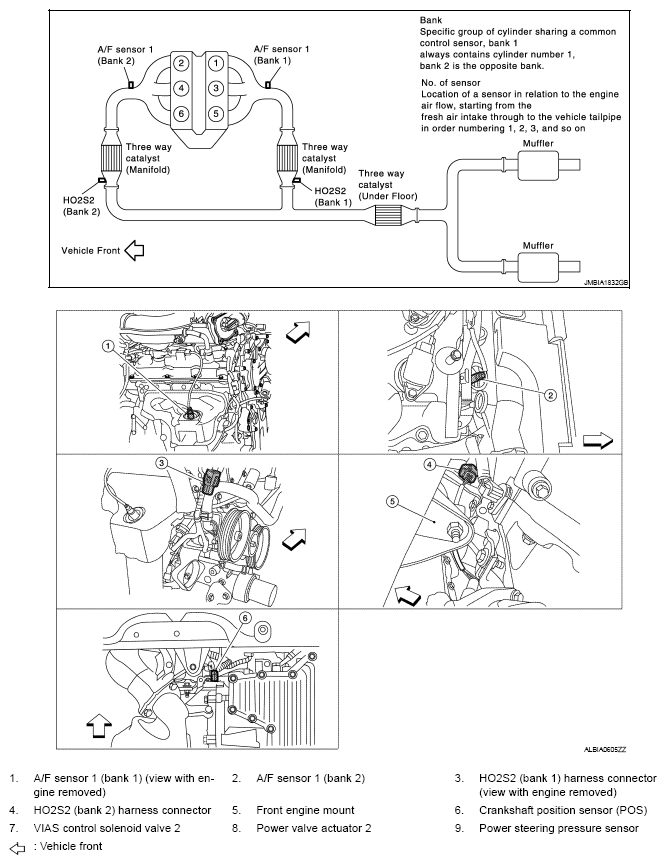

Fig 6: Identifying Evaporative Emission System Component Parts Location (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
