Engine Control System - Introduction
›
Function Diagnosis
›
Variable Induction Air System
›
Component Parts Location
Component Parts Location

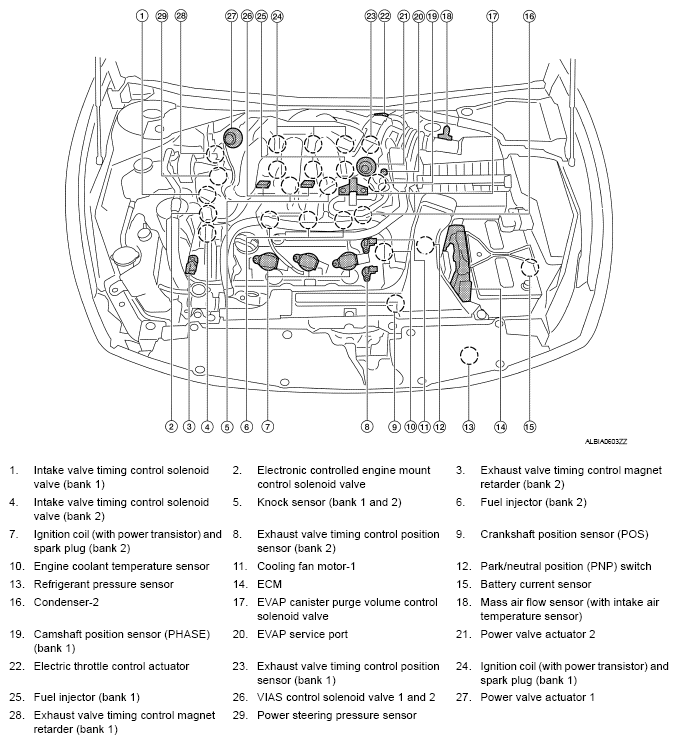

Fig 1: Identifying Variable Induction Air System Component Parts Location (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

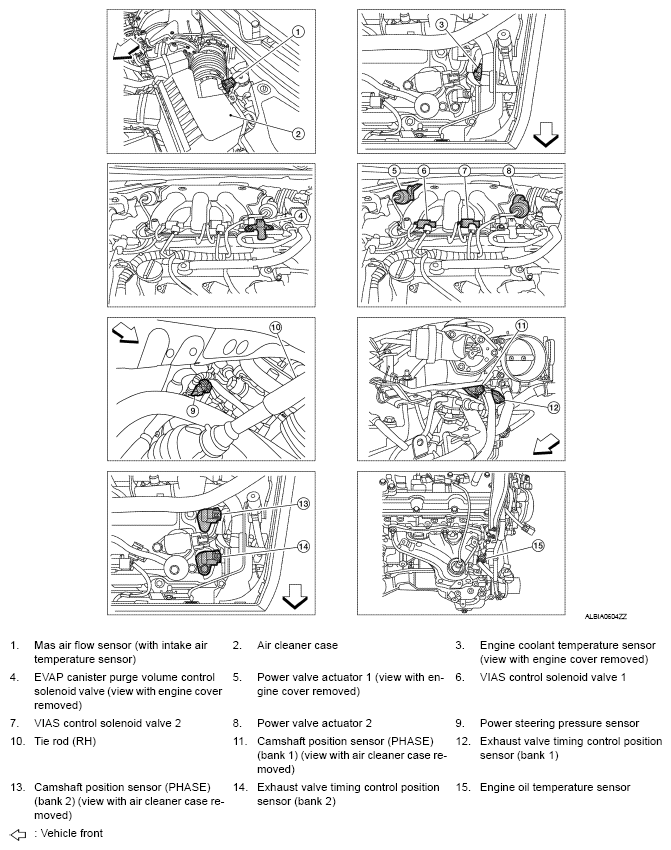

Fig 2: Identifying Variable Induction Air System Component Parts Location (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

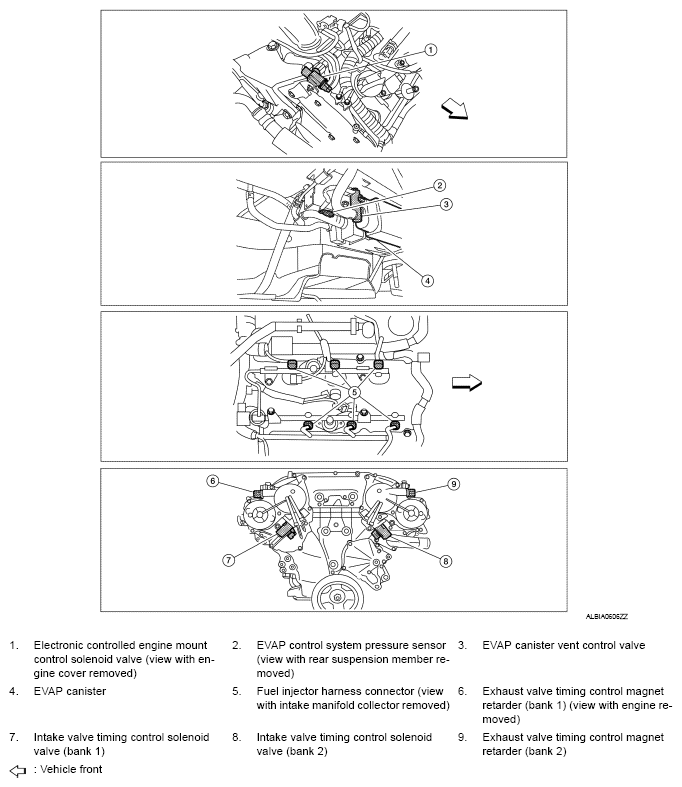

Fig 3: Identifying Variable Induction Air System Component Parts Location (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

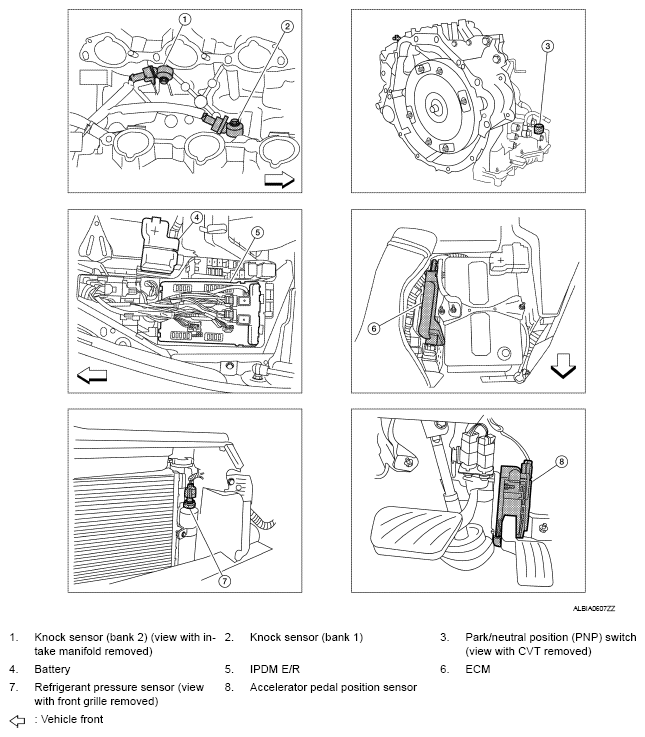

Fig 4: Identifying Variable Induction Air System Component Parts Location (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

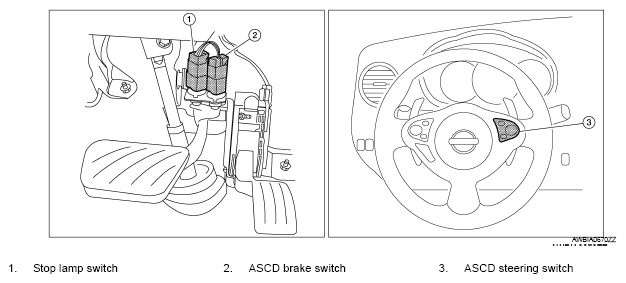

Fig 5: Identifying Variable Induction Air System Component Parts Location (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

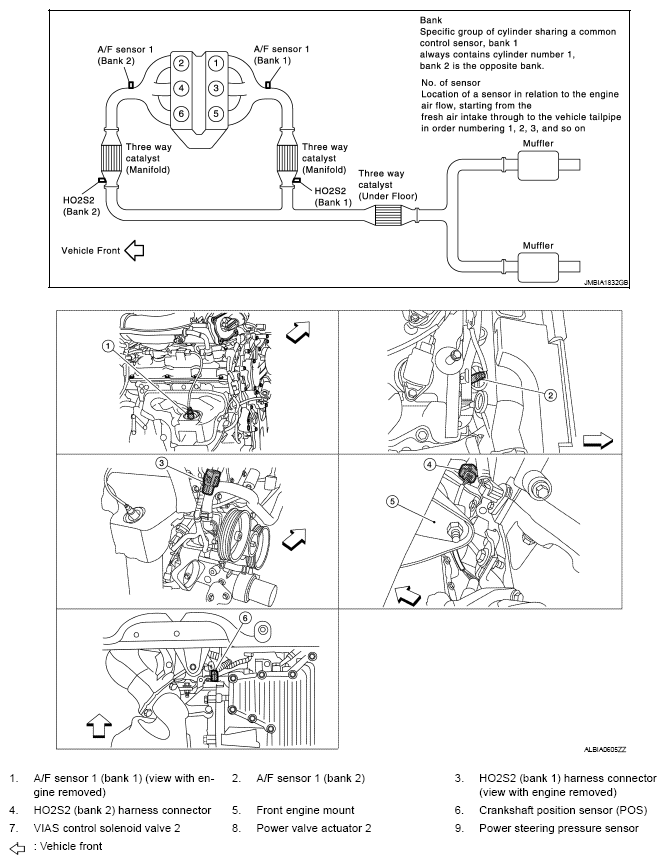

Fig 6: Identifying Variable Induction Air System Component Parts Location (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
