Component Parts Location
Component Parts Location

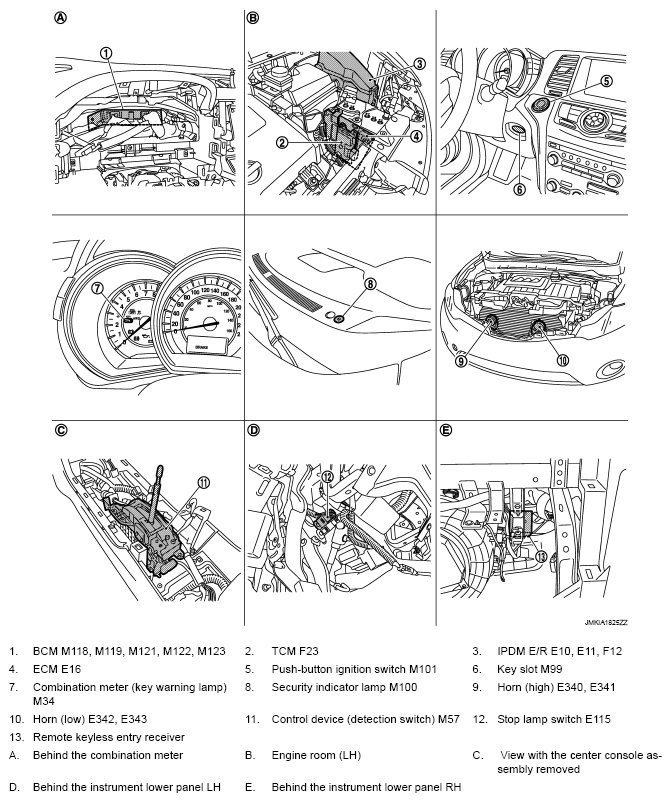

Fig 1: Identifying Vehicle Security System Diagram Component Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Vehicle Security System Diagram Component Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
