Intelligent Key System/Engine Start Function
›
Component Parts Location
Component Parts Location

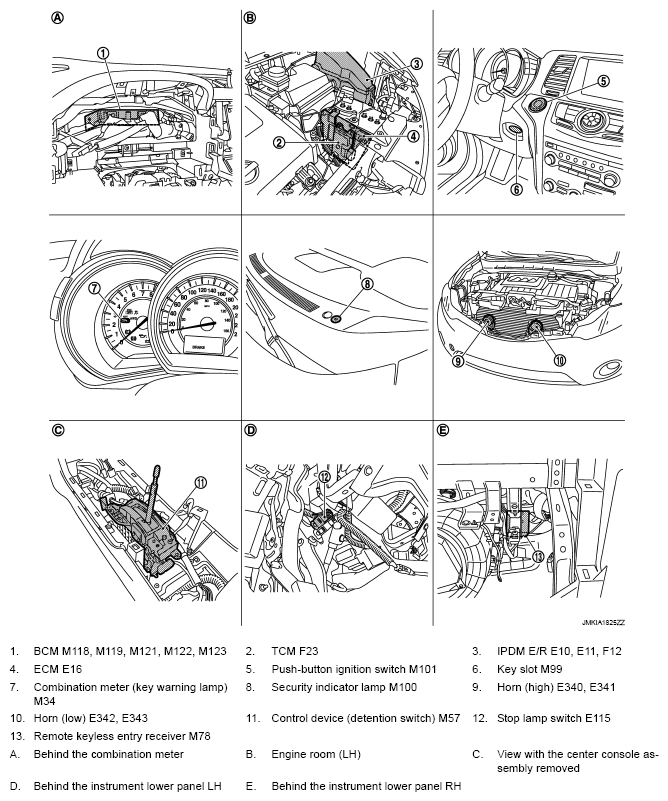

Fig 1: Identifying Intelligent Key And Engine Start Function Component Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

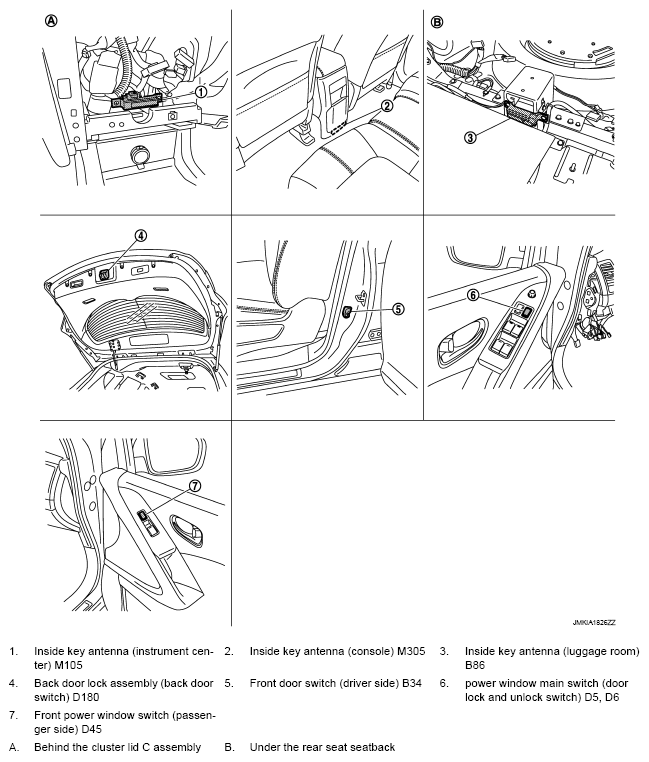

Fig 2: Identifying Intelligent Key And Engine Start Function Component Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
