IGNITION TIMING : Special Repair Requirement

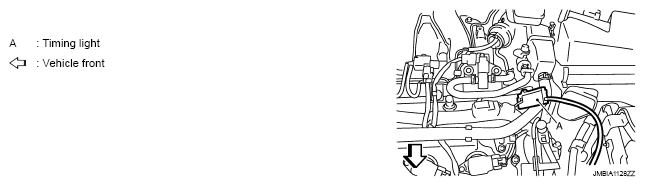

1. Attach timing light to loop wires as shown.
   Fig 1: Attaching Timing Light To Loop Wires

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
   Fig 2: Identifying Timing Indicator

   Courtesy of NISSAN MOTOR CO., U.S.A.

INSPECTION END
