Engine Control System - Introduction
›
Function Diagnosis
›
Electronic Controlled Engine Mount
›
System Diagram
System Diagram

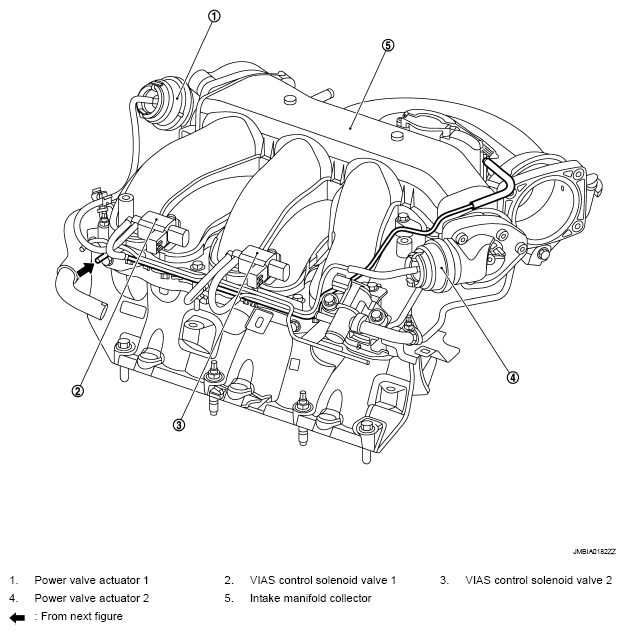

Fig 1: Electronic Controlled Engine Mount System Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

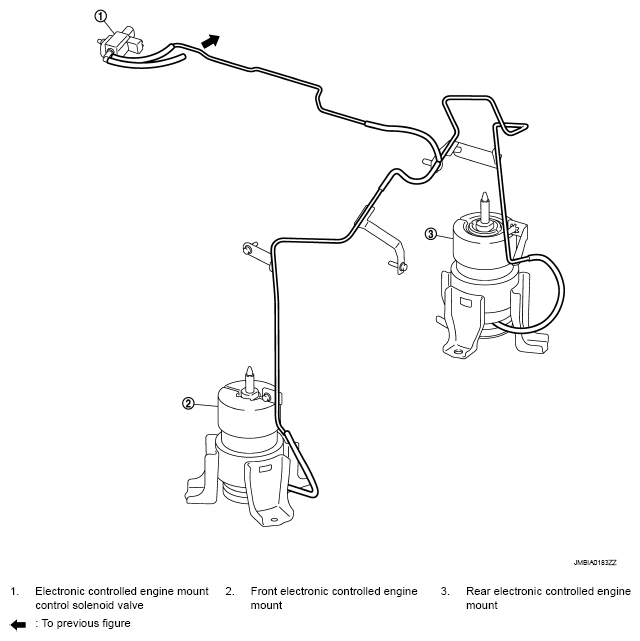

Fig 2: Electronic Controlled Engine Mount System Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
