Nissan-Datsun
›
2009
›
Pathfinder S, 4WD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Security Control System
›
With Intelligent Key System
›
Function Diagnosis
›
Intelligent Key System/Engine Start Function
›
Component Parts Location
Component Parts Location

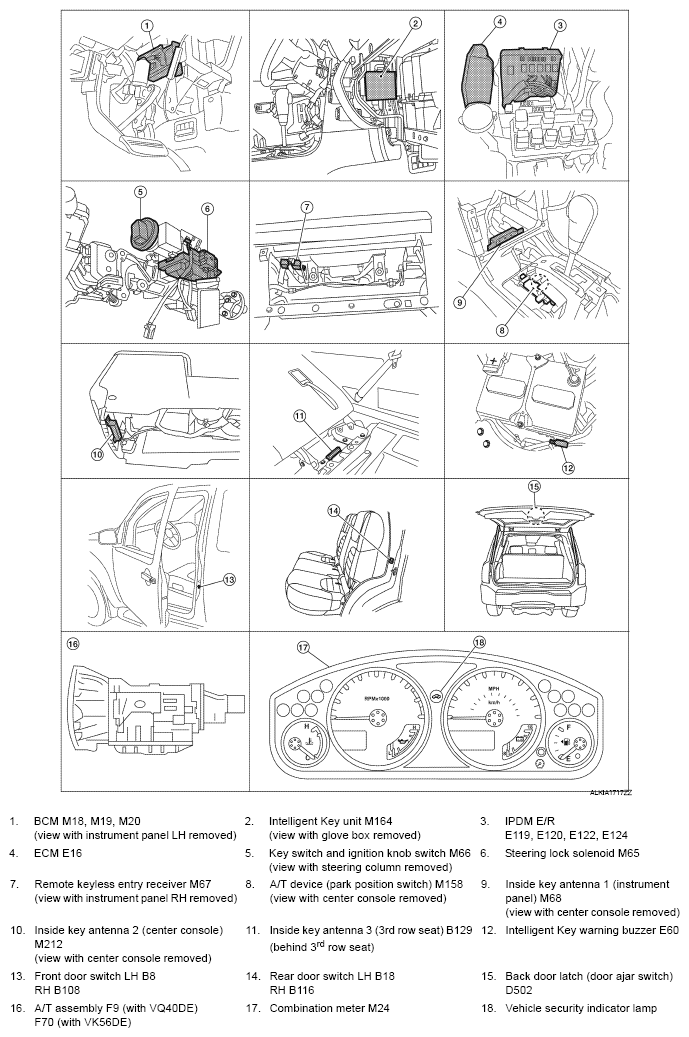

Fig 1: Identifying Key System And Engine Start Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
