Engine Control System - Introduction (VQ40DE)
›
Function Diagnosis
›
Engine Control System
›
System Diagram
System Diagram

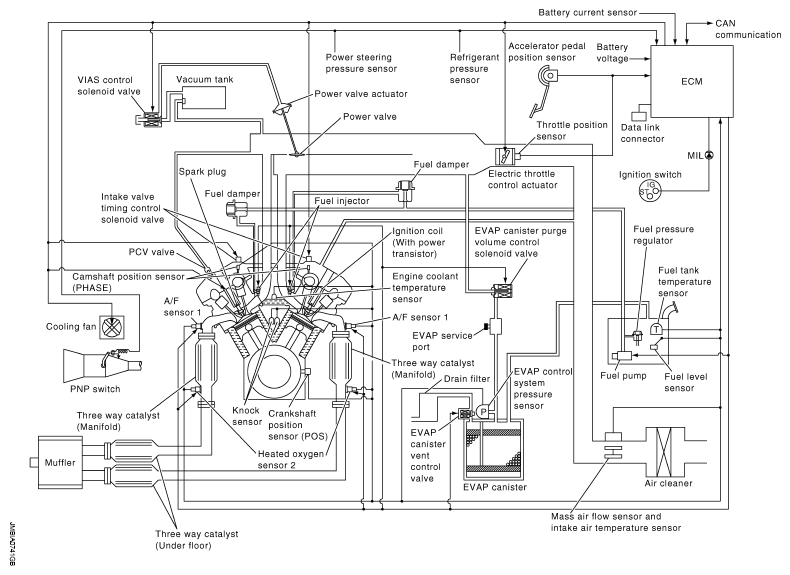

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
