Engine Control System - Introduction
›
Service Information
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Basic Engine Control System
System - Basic Engine Control System

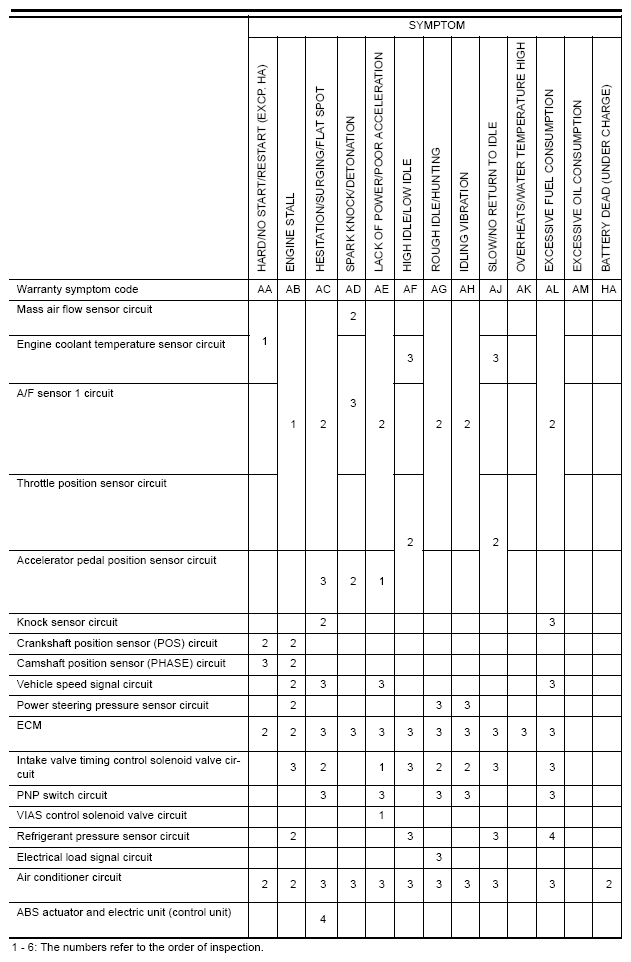

Fig 1: Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
