Exploded View

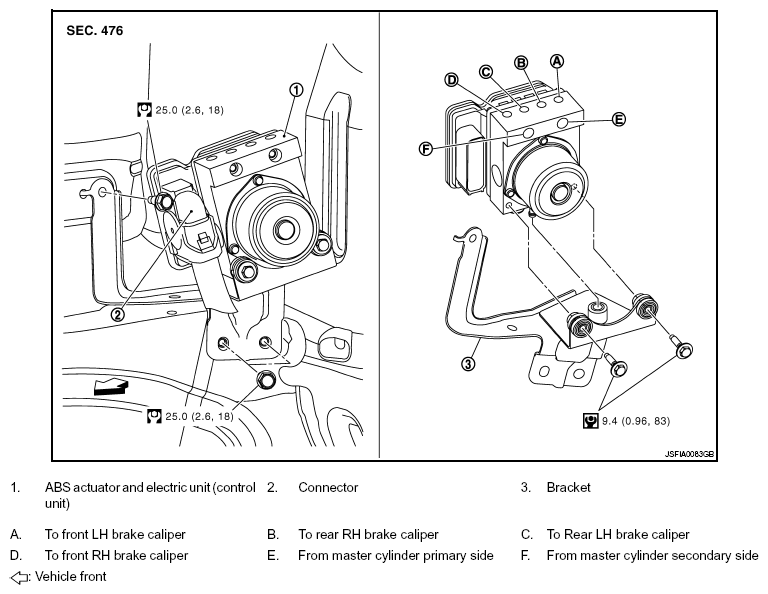

Fig 1: Exploded View Of ABS Actuator And Electric Unit

G06058026

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol in the figure.
