Diagnosis And Repair Workflow
›
Work Flow
›
Overall Sequence
Overall Sequence

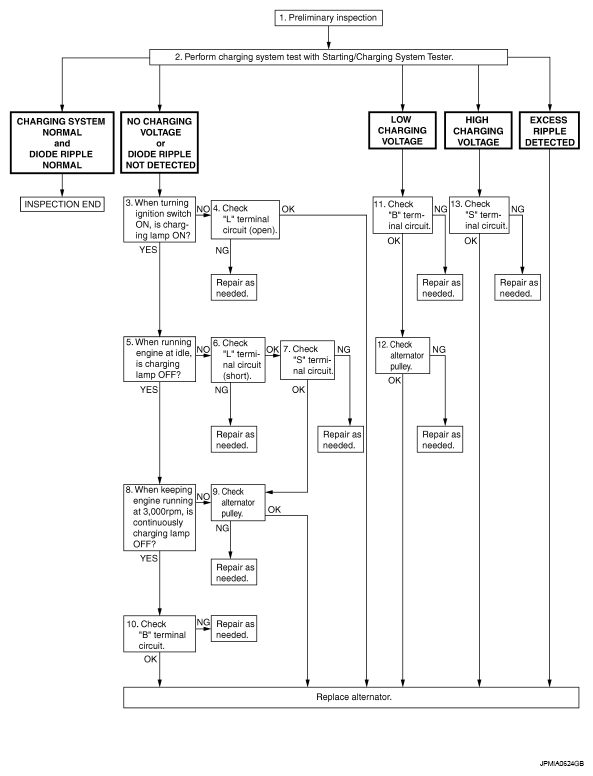

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
