Engine Control System (MEXICO)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System

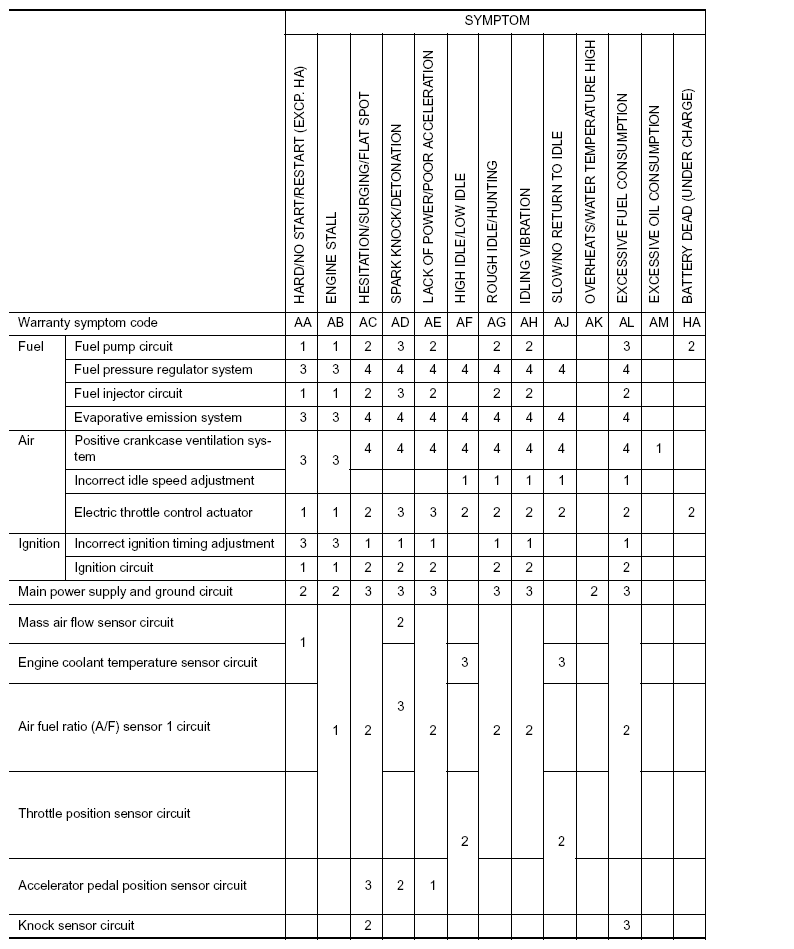

Fig 1: Basic Engine Control System - Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

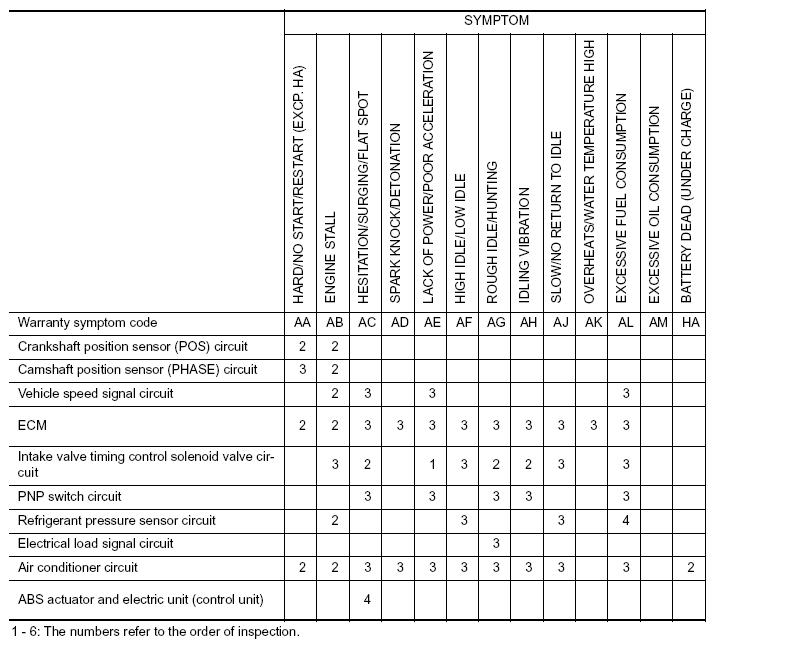

Fig 2: Basic Engine Control System - Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
