Exploded View

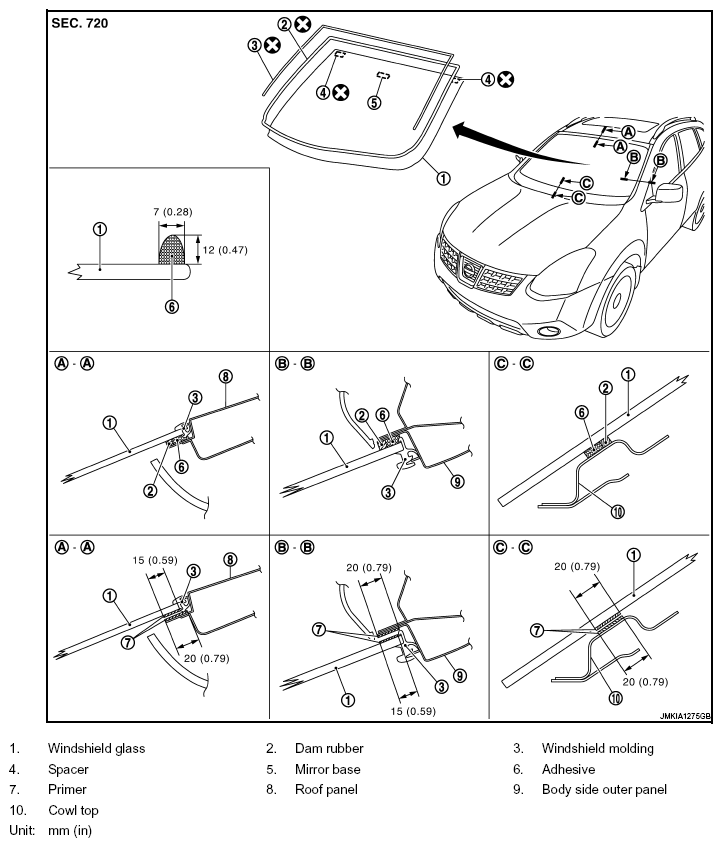

Fig 1: Exploded View Of Windshield Glass

G06057321

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols n the figure.
