Removal and Installation: Removal

  1. Remove air duct (inlet). Refer to "EXPLODED VIEW ".
  2. Remove battery. Refer to "EXPLODED VIEW ".
  3. Remove IPDM E/R (1) while pushing and opening pawls (A).
  4. Disconnect connectors from IPDM E/R.

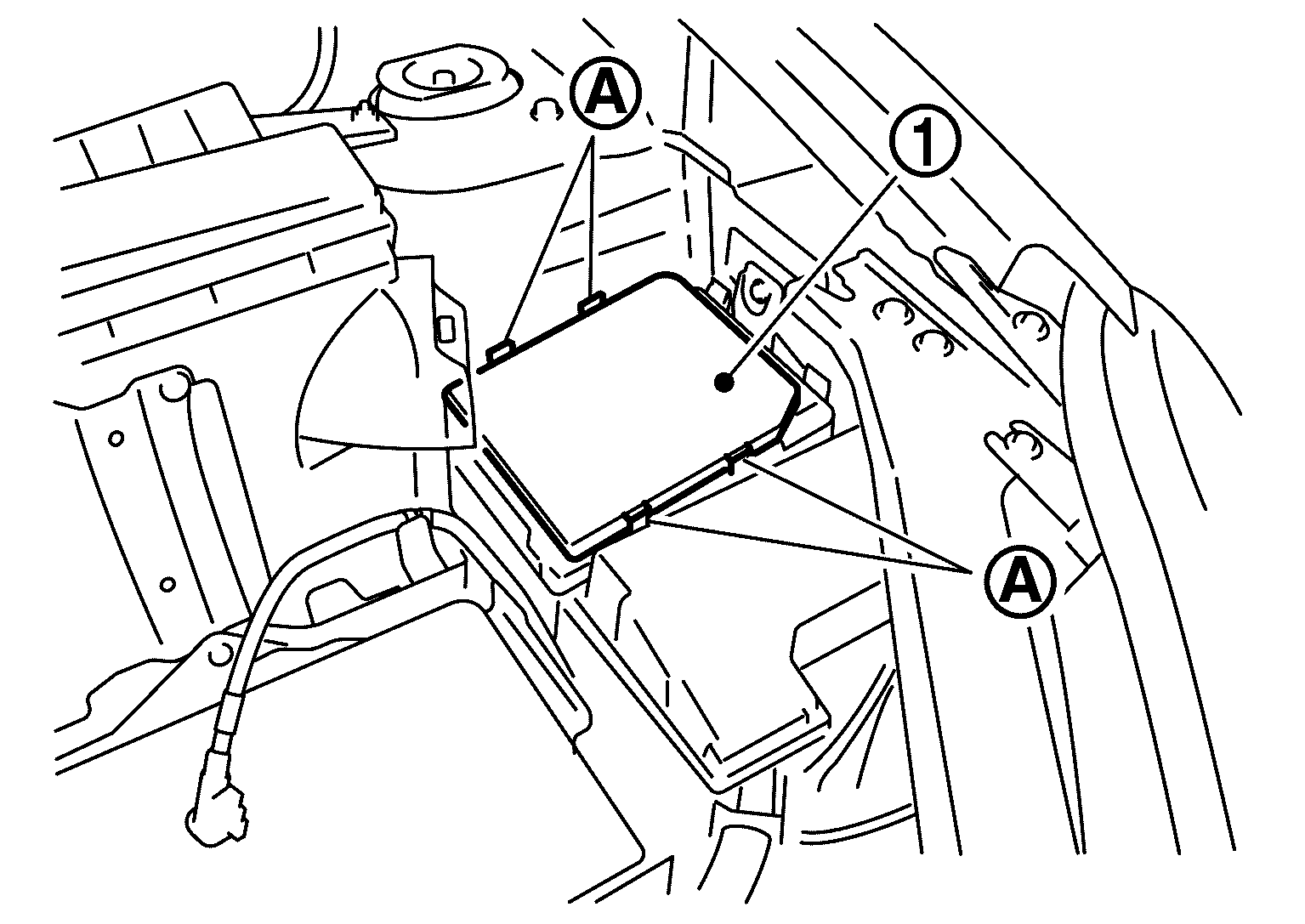

    Fig 1: Identifying IPDM E/R And Opening Pawls
    G05372894Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove fuse and fusible link block cover.
  6. Unlock all pawls (A) of IPDM E/R bracket, and remove IPDM E/R bracket (1).

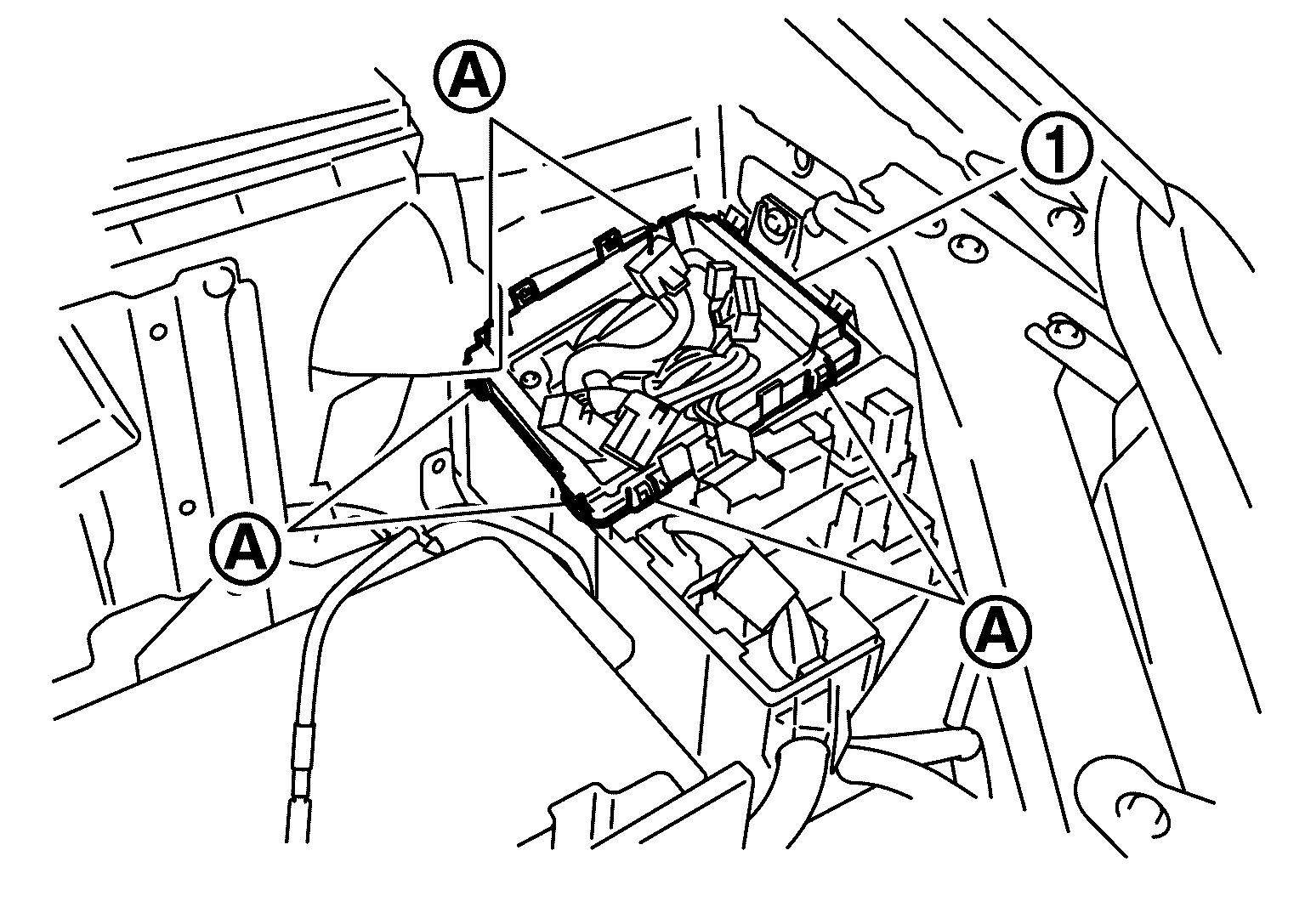

    Fig 2: Identifying IPDM E/R Bracket And Pawls
    G05372895Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Unlock pawls of IPDM E/R cover A, harness cover A and harness cover B, remove them.
  8. Disconnect connectors connected to fuse and fusible link block upper side, and remove fuse and fusible link block.
  9. Remove IPDM E/R cover B mounting bolts (A) and battery cable fixed clip (B), and remove IPDM E/R cover B (1).

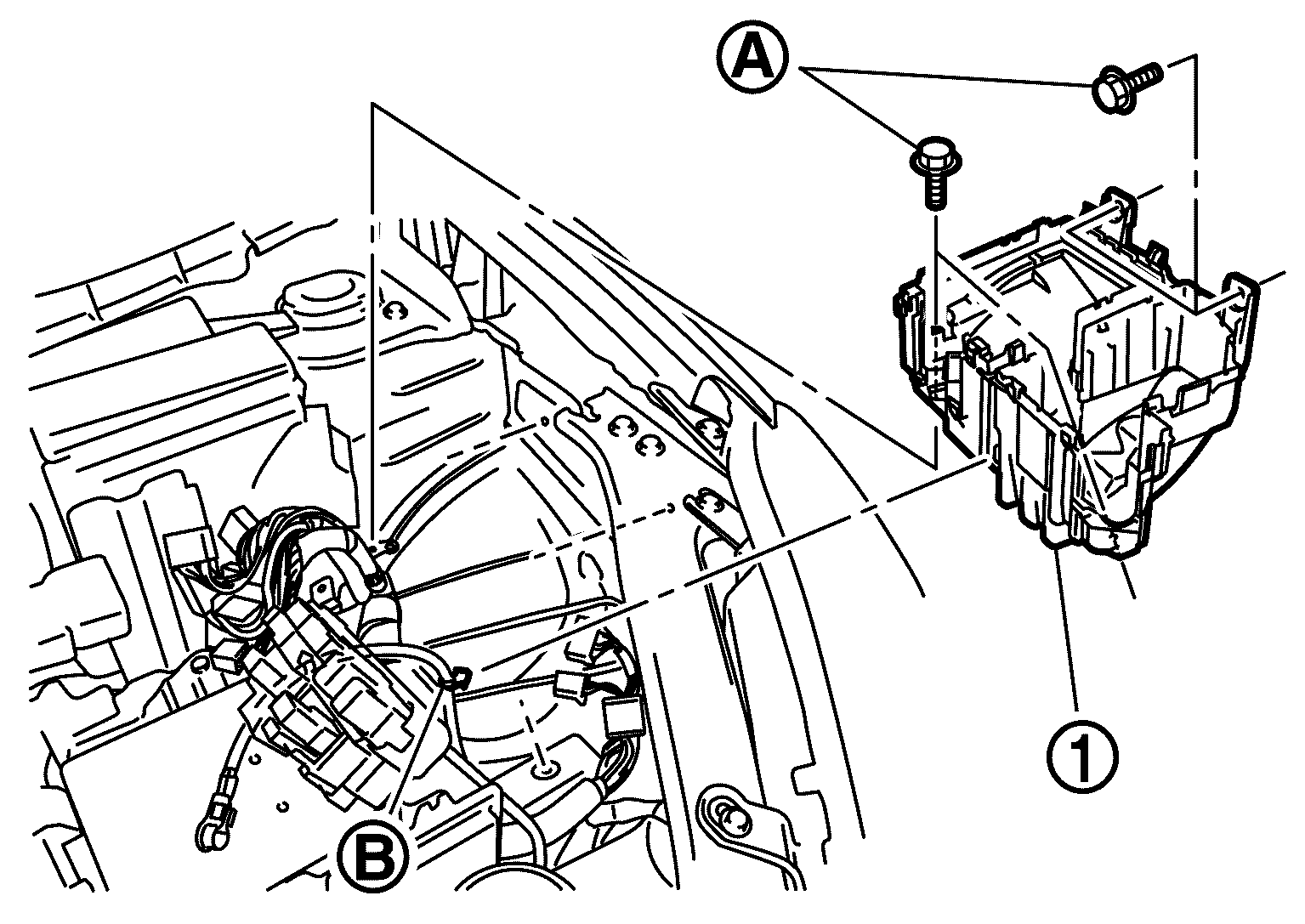

    Fig 3: Identifying IPDM E/R Cover Mounting Bolts And IPDM E/R Cover
    G05372896Courtesy of NISSAN MOTOR CO., U.S.A.
