Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

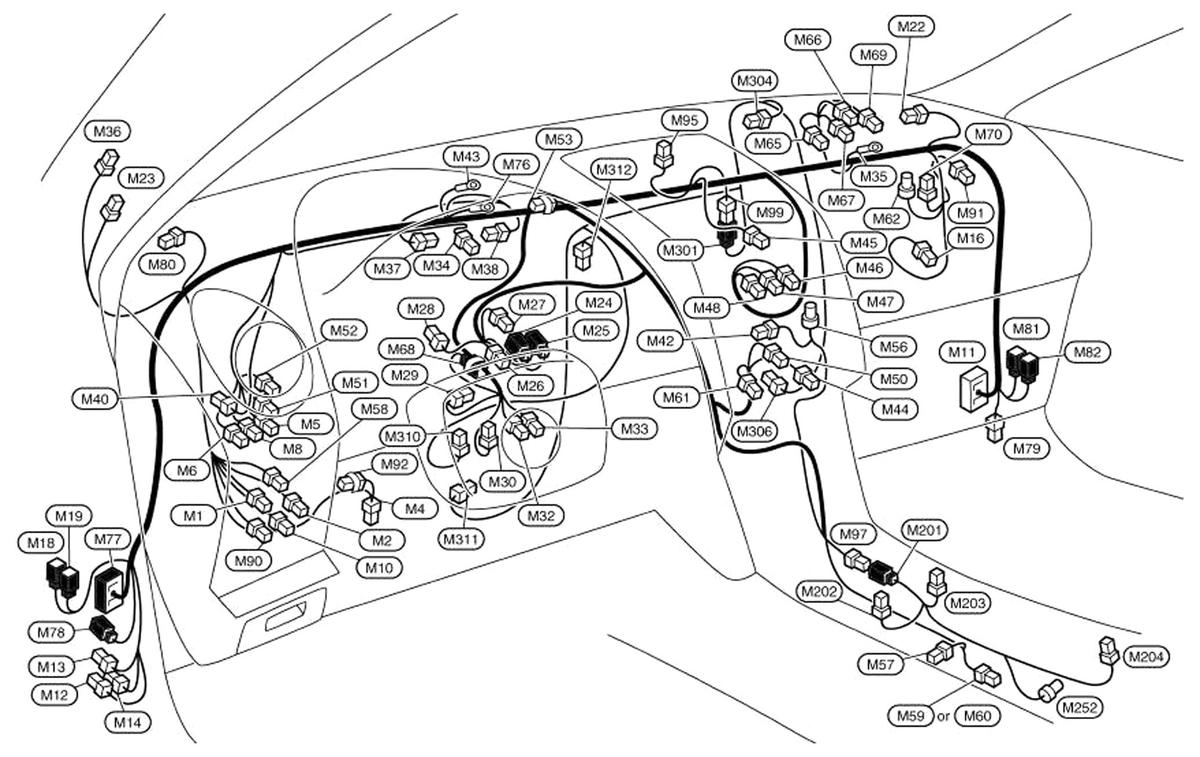

| Fuse Block (J/B) (M1) | Behind left end of dash. See Figure. |

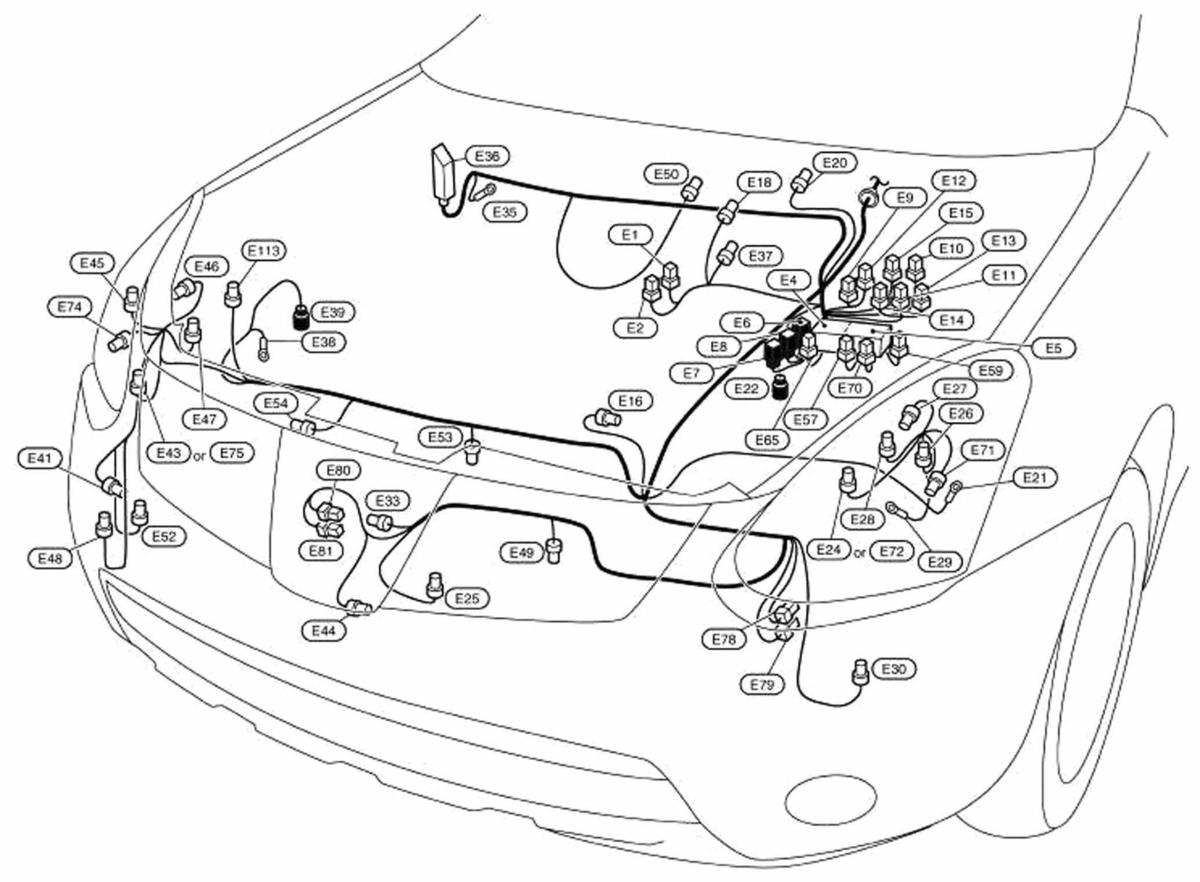

| Fuse, Fusible Link & Relay Box (E4) | Left side of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) (E5) | Left side of engine compartment. See Figure. |
