Door
›
Fitting Adjustment
›
Notes
Fitting Adjustment: Notes

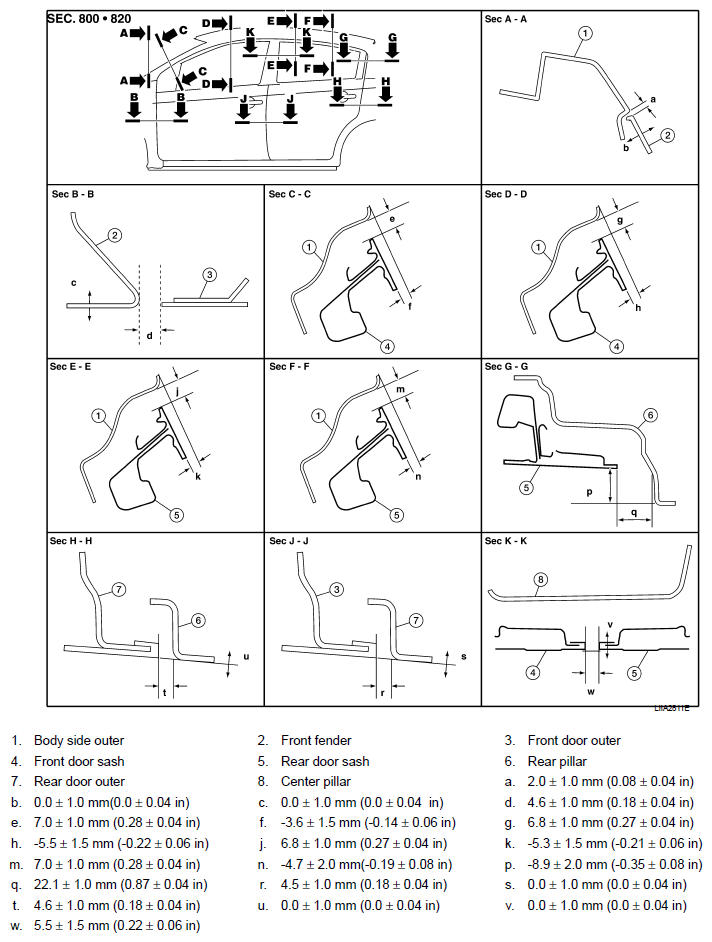

Fig 1: Door Fitting Adjustment Gap Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
