Wiring Diagram - KEYLES -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: BL-KEYLESS - 01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

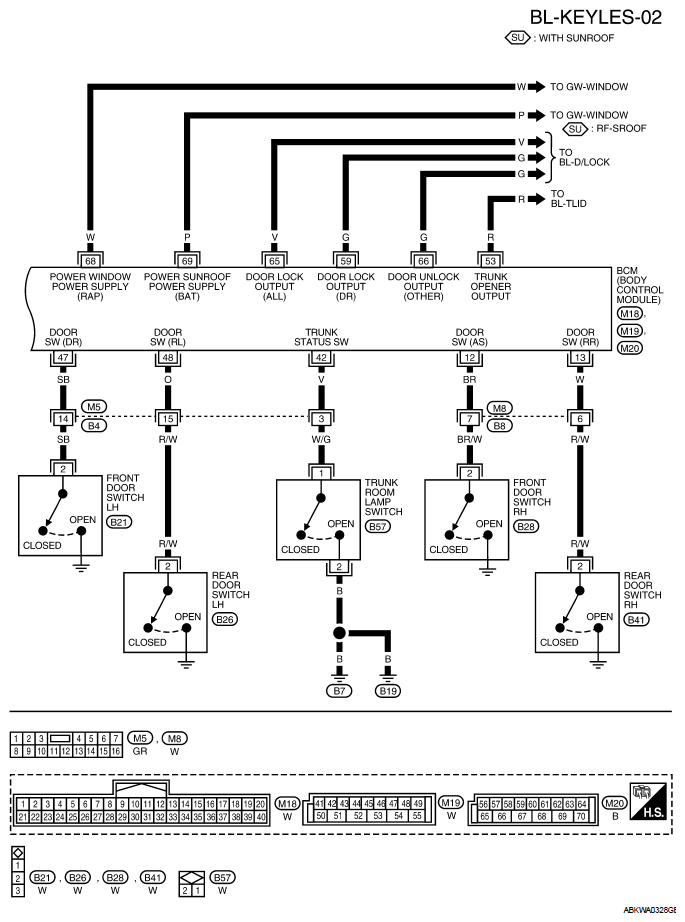

Fig 2: BL-KEYLESS - 02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: BL-KEYLESS - 03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
