Parking Brake Control: Component

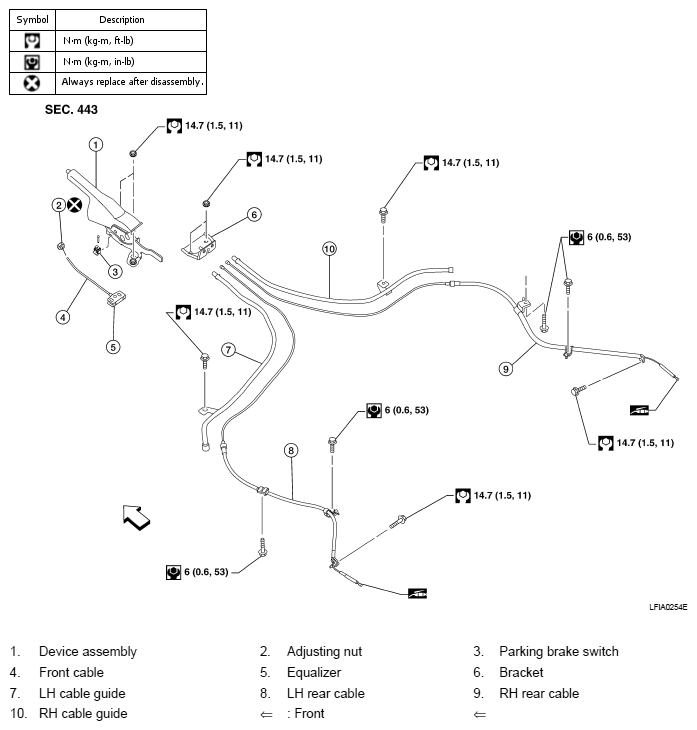

Fig 1: Parking Brake Control Replacement Components With Torque Specifications
G05925850Courtesy of NISSAN MOTOR CO., U.S.A.
