Disassembly and Assembly: Notes

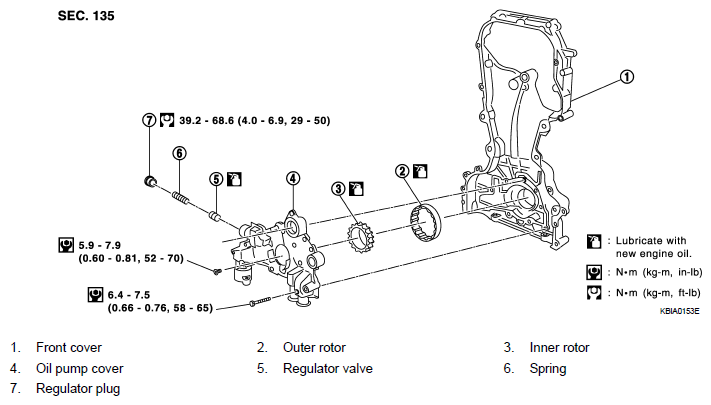

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Before installation, apply new engine oil to the parts as shown.
