Engine Assembly: Component

WARNING: This page is about a different variant/trim than selected.

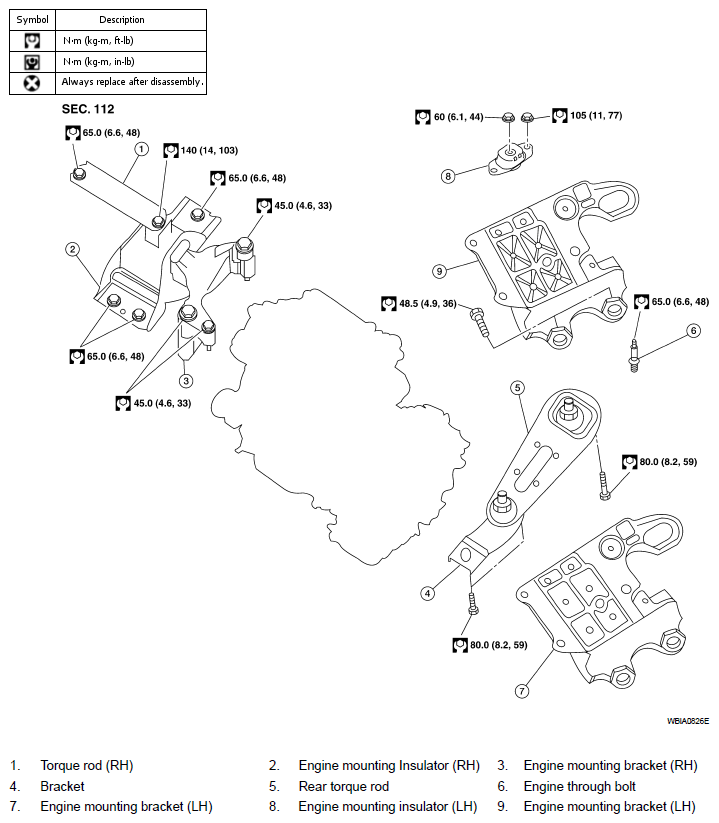

Fig 1: Engine Assembly Replacement Components With Torque Specifications
G05923219Courtesy of NISSAN MOTOR CO., U.S.A.
