IPDM Service (NTB09-036)

WARNING: This page is about the Sentra Base, Automatic CVT, which is a different variant/trim than selected.

Publication date: 2009-04-27
Reference number: NTB09-036

IPDM SERVICE

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB09-036, Date of Issue: April 27, 2009

The Intelligent Power Distribution Module (IPDM) is ONLY serviceable as an assembly.

The ONLY serviceable parts of an IPDM are the fuses.

Some IPDM designs have sections that appear to be serviceable relays.
These "relays" are NEVER to be removed.
These "relays" may have markings indicating they are similar. They are not "swappable".

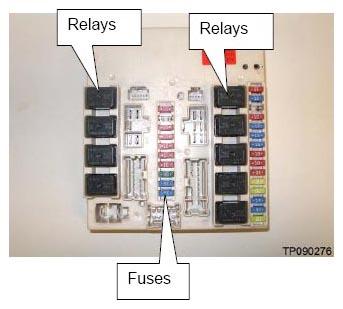

Fig 1: Relays & Fuses

CAUTION: NEVER REMOVE relays from an IPDM.

Tampering with the relays of an IPDM may cause additional incidents with the vehicle. Such incidents may include:
