Home › Nissan-Datsun › 2009 › Sentra SE-R › Repair and Diagnosis › Suspension › Wheel Alignment › Rear Suspension System › Service Information › Rear Suspension Assembly › Component

Rear Suspension Assembly: Component

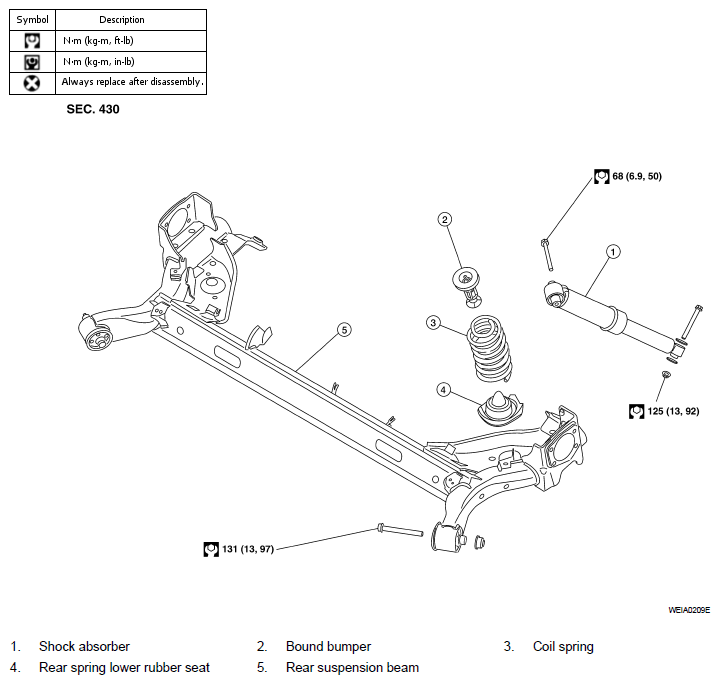

Fig 1: Rear Suspension Assembly Components With Torque Specifications
G05925810Courtesy of NISSAN MOTOR CO., U.S.A.
