Cross-Sectional View - RE0F10A
Cross-Sectional View - RE0F10A

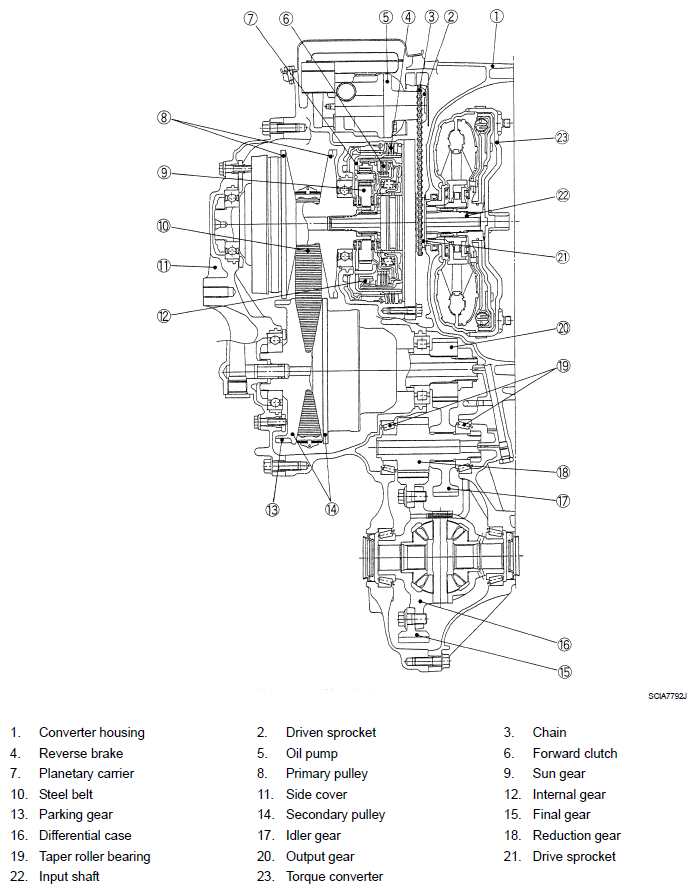

Fig 1: Cross-Sectional View - CVT System (RE0F10A)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
