Continuously Variable Transmission (CVT)
›
Service Information
›
CVT System
›
TCM Function
›
Control System Diagram
Control System Diagram

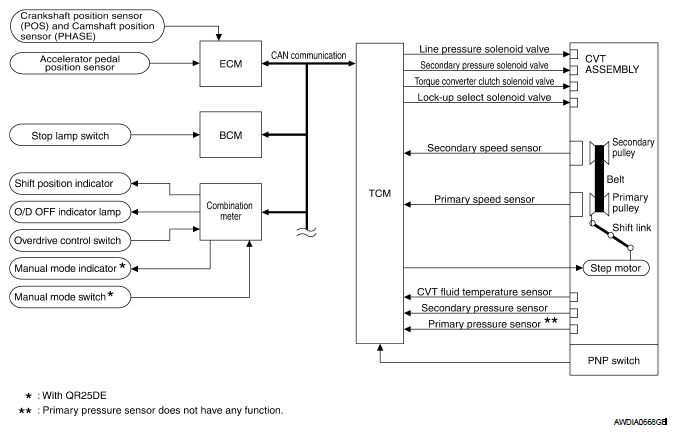

Fig 1: Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
