On-Vehicle Service: Components

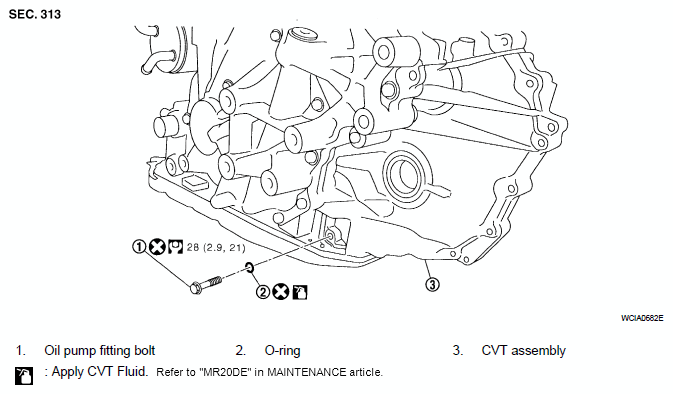

Fig 1: Oil Pump Fitting Bolt Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

• Do not reuse O-ring.
• Apply CVT fluid to O-ring.
• After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to "CHECKING CVT FLUID ".
