Components
Removal and Installation (MR20DE): Components

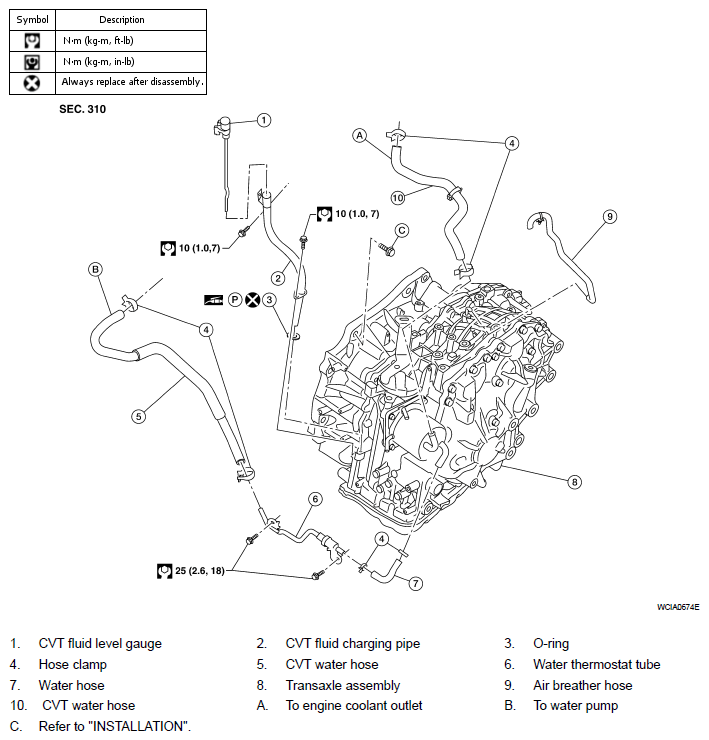

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications - MR20DE
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
