Continuously Variable Transmission (CVT)
›
Service Information
›
Transaxle Assembly
›
Removal and Installation (QR25DE)
›
Components
Removal and Installation (QR25DE): Components

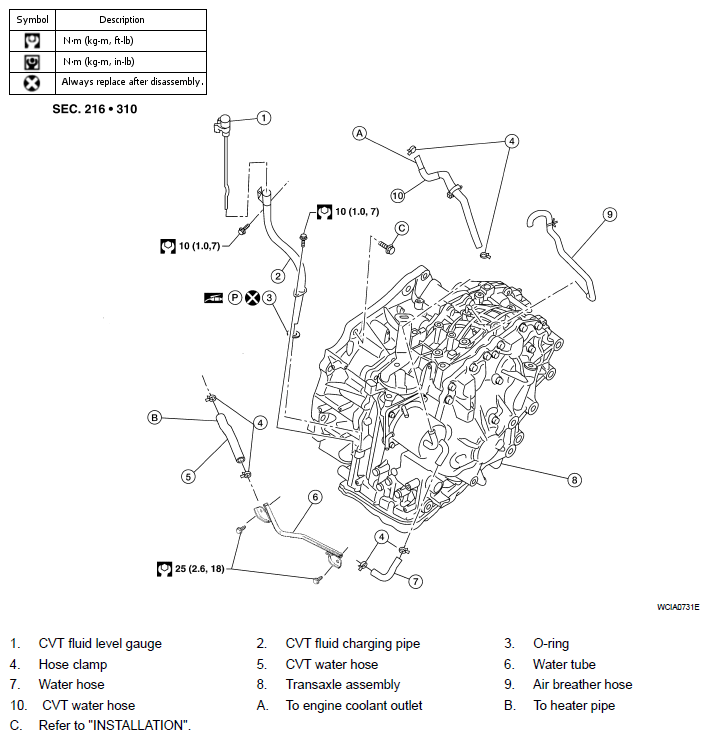

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications - QR25DE
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
