Removal And Installation - 2.5L
›
Components
Removal And Installation - 2.5L: Components

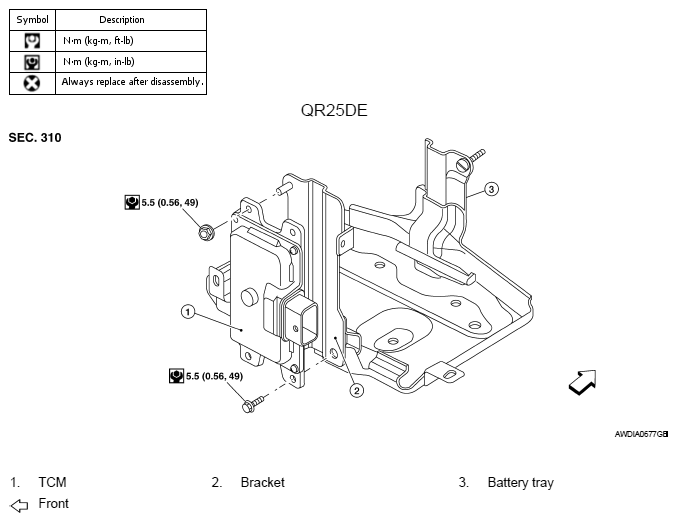

Fig 1: Transmission Control Module Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
