Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body.

   Refer to "GROUND INSPECTION ".

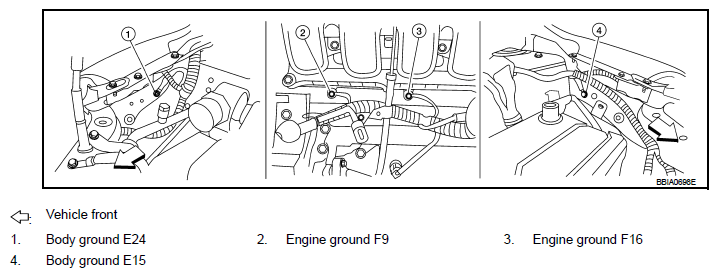

   Fig 1: Identifying Ground Connections Components

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK : GO TO 2.

   NG : Repair or replace ground connections.

1. Disconnect accelerator pedal position (APP) sensor (1) harness connector.
Fig 2: Identifying APP Sensor Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with CONSULT-III or tester.

   Voltage: Approximately 5V

   OK or NG

   OK : GO TO 3.

   NG : Repair open circuit or short to ground or short to power in harness or connectors.

   Fig 3: Checking Voltage Between APP Sensor Terminal 4 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 111 and APP sensor terminal 2.

   Refer to Wiring Diagram.

   Continuity should exist  .

4. Also check harness for short to ground and short to power.

   OK or NG

   OK : GO TO 4.

   NG : Repair open circuit or short to ground or short to power in harness or connectors.

1. Check harness continuity between ECM terminal 110 and APP sensor terminal 3.

   Refer to Wiring Diagram.

   Continuity should exist  .

2. Also check harness for short to ground and short to power.

   OK or NG

   OK : GO TO 5.

   NG : Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK : GO TO  7.

NG : GO TO 6.

1. Replace accelerator pedal assembly.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Perform "IDLE AIR VOLUME LEARNING ".

   INSPECTION END

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

INSPECTION END
