Diagnosis Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground screw on the body.

      Refer to "GROUND INSPECTION ".

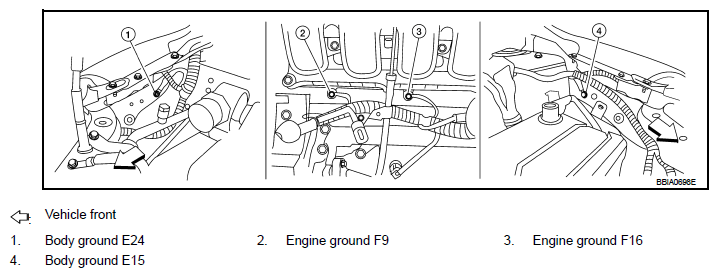

      Fig 1: Identifying Ground Connections Components
      G05932668Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK : GO TO 2.

      NG : Repair or replace ground connections.

  2. CLEAR THE SELF-LEARNING DATA

    With CONSULT-III

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-III.
    3. Clear the self-learning control coefficient by touching "CLEAR".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 detected?

      Is it difficult to start engine?

    Without CONSULT-III

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor (1) harness connector, and restart and run engine for at least 5 seconds at idle speed.
    4. Stop engine and reconnect mass air flow sensor harness connector.
    5. Make sure DTC P0102 is displayed.
    6. Erase the DTC memory. Refer to "EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    7. Make sure DTC P0000 is displayed.
    8. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 detected?

      Is it difficult to start engine?

      Fig 2: Identifying Mass Air Flow (MAF) Sensor Harness Connector
      G05932669Courtesy of NISSAN MOTOR CO., U.S.A.

      Yes or No

      Yes : Perform trouble diagnosis for DTC P0171. Refer to DTC P0171 FUEL INJECTION SYSTEM FUNCTION .

      No : GO TO 3.

  3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect heated oxygen sensor 2 harness connector (2).
      • <==: Vehicle front
      • Heated oxygen sensor 2 (1)
    3. Disconnect ECM harness connector.
    4. Check harness continuity between ECM terminal 59 and HO2S2 terminal 1.

      Refer to Wiring Diagram.

      Continuity should exist  .

      Fig 3: Identifying Heated Oxygen Sensor 2 Harness Connector
      G05932670Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Also check harness for short to ground and short to power.

      OK or NG

      OK : GO TO 4.

      NG : Repair open circuit or short to ground or short to power in harness or connectors.

  4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 50 and HO2S2 terminal 4.

      Refer to Wiring Diagram.

      Continuity should exist  .

    2. Check harness continuity between ECM terminal 50 or HO2S2 terminal 4 and ground.

      Refer to Wiring Diagram.

      Continuity should not exist  .

    3. Also check harness for short to power.

      OK or NG

      OK : GO TO 5.

      NG : Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK HEATED OXYGEN SENSOR 2

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK : GO TO 6.

    NG : Replace heated oxygen sensor 2.

  6. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    INSPECTION END
