Engine Control System - Introduction
›
Service Information
›
Trouble Diagnosis - Specification Value
›
Diagnosis Procedure
›
Overall Sequence
Overall Sequence

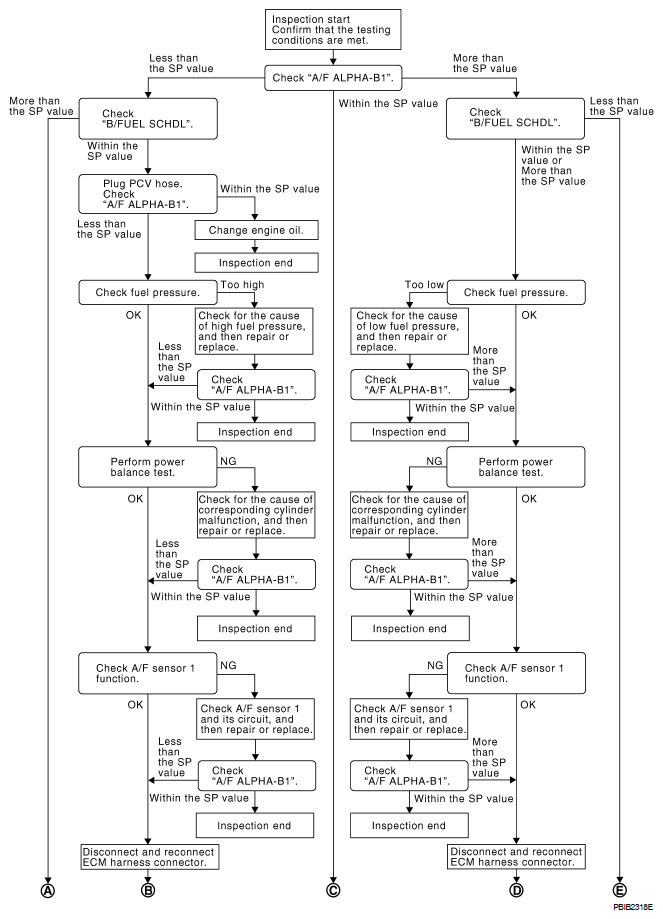

Fig 1: Diagnosis Procedure Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

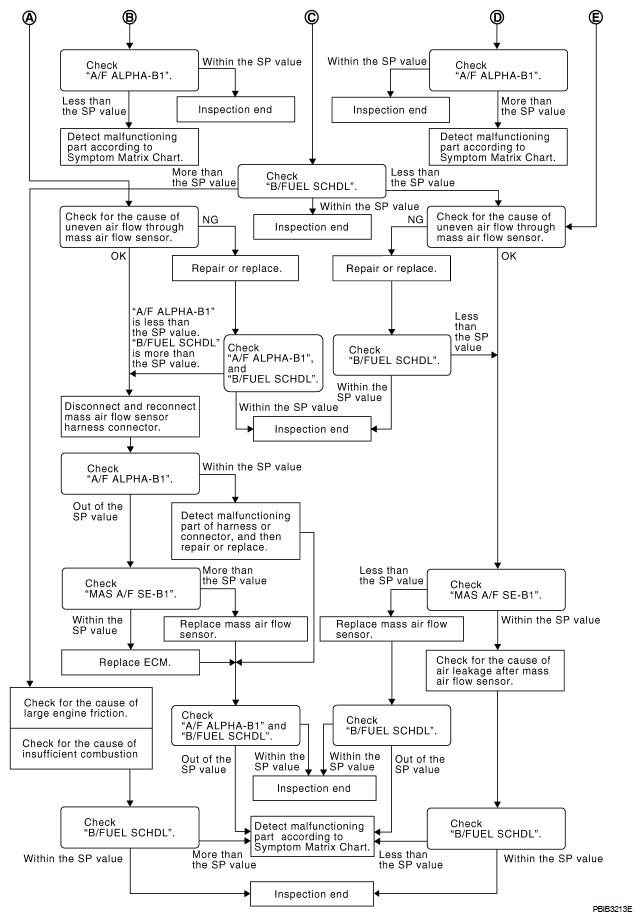

Fig 2: Diagnosis Procedure Flow Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
