Engine Brake Control (Overrun Clutch Control)
›
Overrun Clutch Operating Conditions
Overrun Clutch Operating Conditions

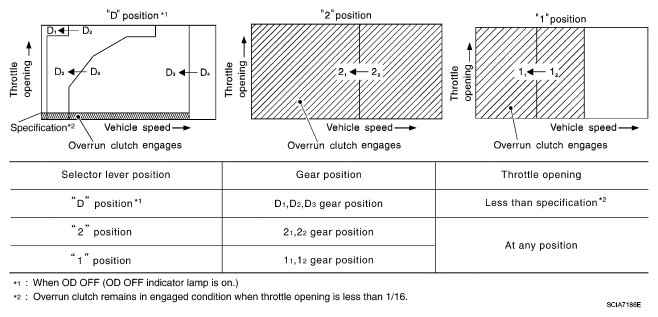

Fig 1: Overrun Clutch Operating Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
