Control Valve Assembly and Accumulators: Components

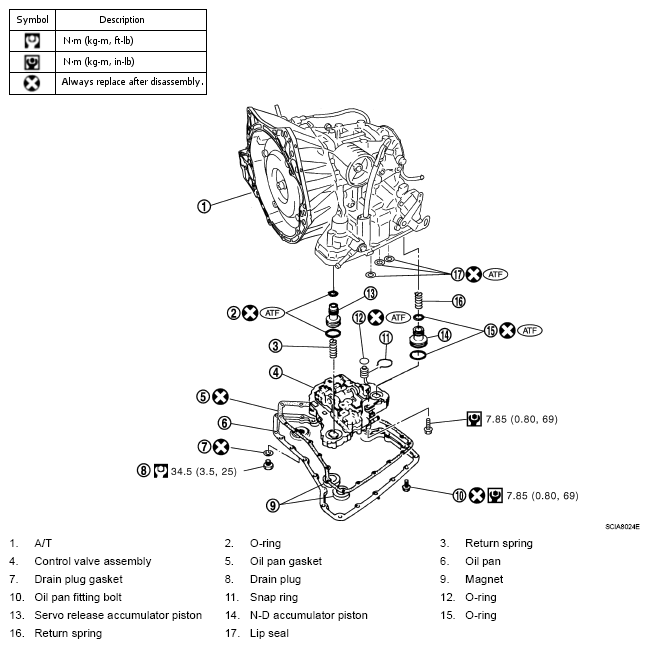

Fig 1: Exploded View Of Control Valve Assembly And Accumulators Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
