Band Servo Piston Assembly: Components

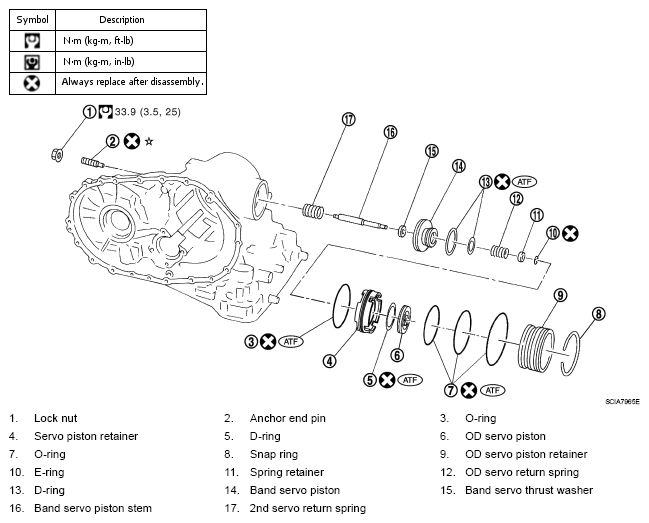

Fig 1: Exploded View Of Band Servo Piston Assembly Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
