Home › Nissan-Datsun › 2009 › Versa Base, Automatic › Repair and Diagnosis › Transmission › Automatic Transmission › Repair For Component Parts › Oil Pump › Components

Oil Pump: Components

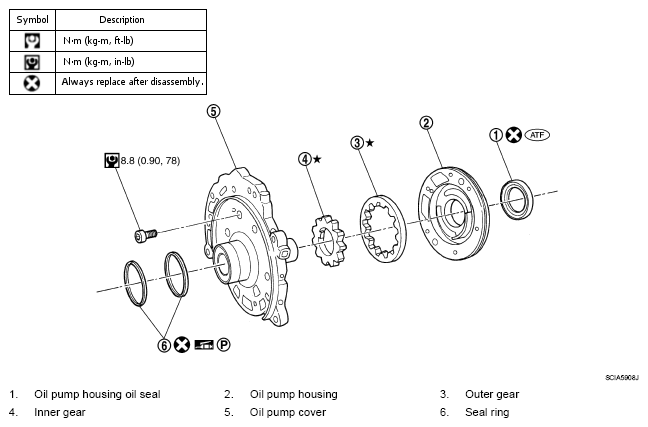

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
G04813322Courtesy of NISSAN MOTOR CO., U.S.A.
